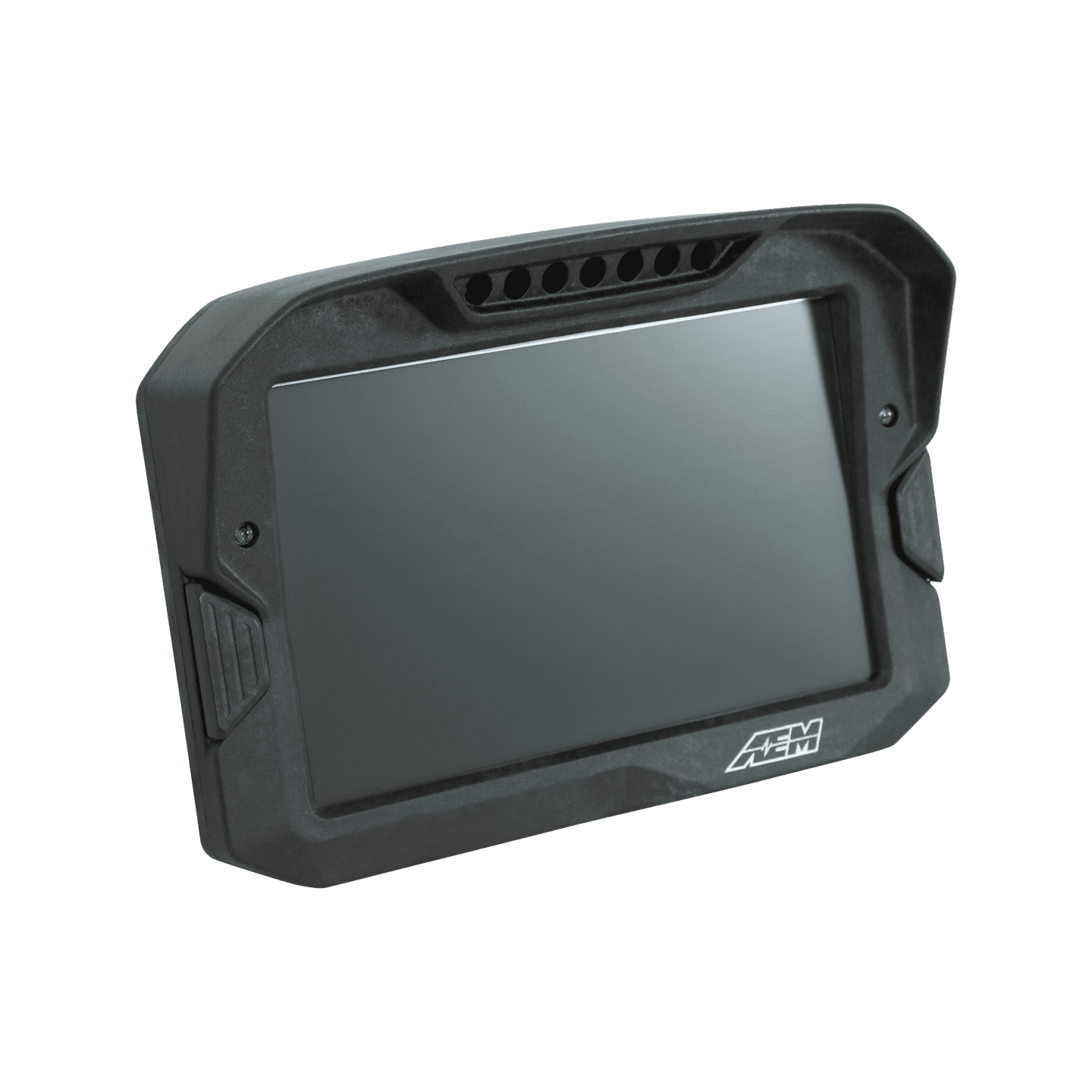

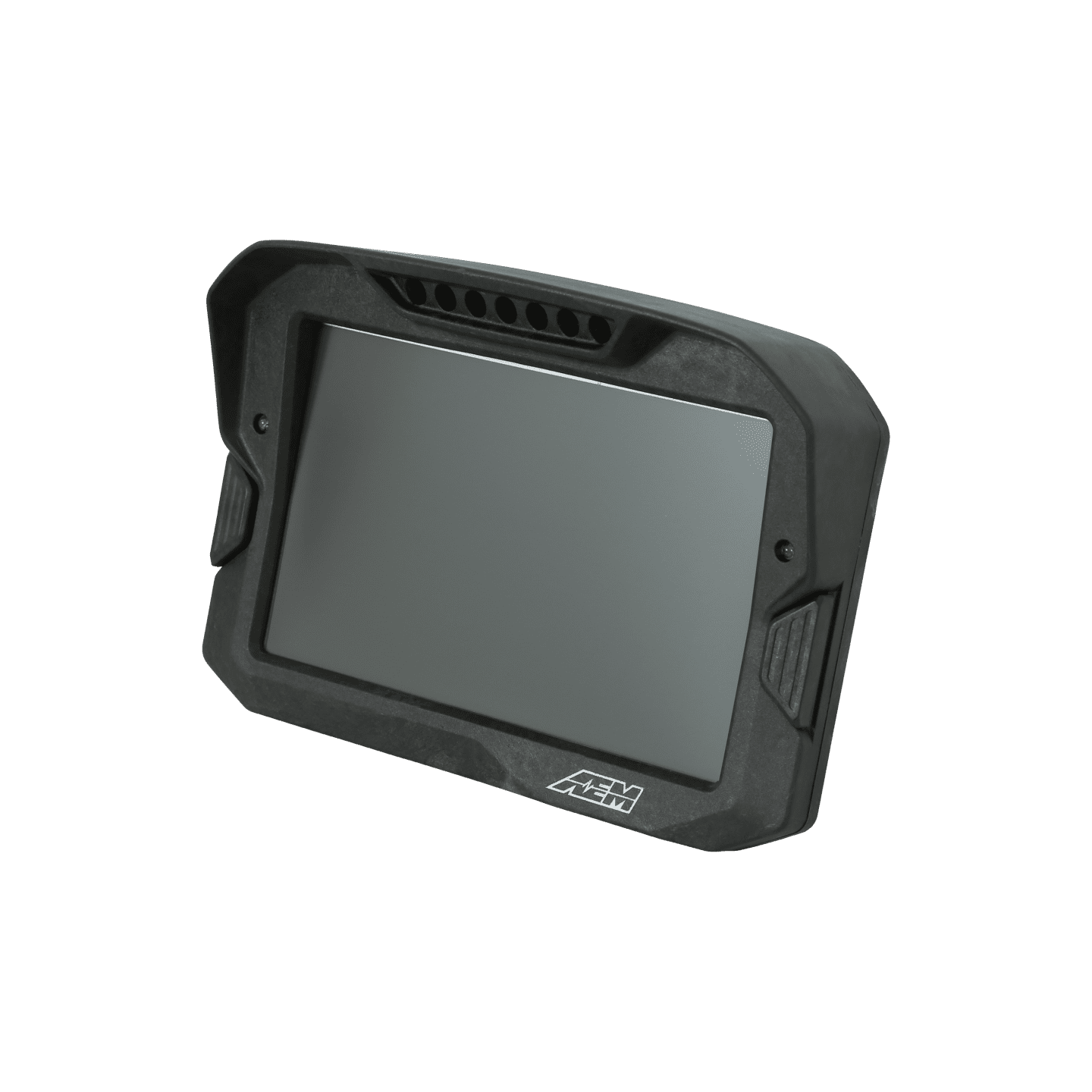

AEM CD-7L Carbon Logging Display (30-5701) for 2008-up factory ECUs using Plug & Play OBDII
$2,306.95
The AEM 30-5701 CD-7L Carbon Display features a 7 inch full-color screen with advanced data logging. It supports OBDII CAN systems for 2008-up vehicles. Includes programmable layouts, shift lights, and alarms. Designed for performance monitoring and customization.
AEM CD-7L Carbon Logging Display 30-5701 for 2008-Up OBDII CAN ECUs
AEM 30-5701 CD-7L Digital Dash for Data Monitoring
The AEM CD-7L Carbon Logging Display 30-5701 delivers advanced data monitoring for 2008-up vehicles using OBDII CAN. It provides real-time engine and vehicle data in a clear digital format. As a result, you gain better insight into performance and vehicle operation.
From the factory, gauges can limit the amount of usable data. However, this display expands your ability to monitor critical parameters. Because of this, you can make more informed decisions while driving or tuning.
Full Color 7 Inch Display with Programmable Interface
The AEM 30-5701 features a full-color 7 inch screen with 800×480 resolution. It is designed to remain visible even in direct sunlight. Therefore, you can read data clearly in all conditions.
In addition, the display supports fully customizable layouts. Because of this, you can create pages that match your driving or racing needs. As a result, your most important data stays front and center.
Advanced Data Logging and Performance Tracking
The AEM 30-5701 includes advanced data logging capabilities. It can record engine parameters, speed, and lap times for later analysis. Therefore, you can review performance and make adjustments.
In addition, the system works with AEM Data Analysis Software. Because of this, you can fine-tune your setup for better results. As a result, performance tuning becomes more precise and effective.
Programmable Shift Lights and Warning Indicators
This display includes seven programmable LED shift lights across the top. These lights can be set to activate at specific RPM levels. Therefore, you know exactly when to shift for optimal performance.
In addition, the system includes programmable alarms and warning indicators. Because of this, you can quickly identify issues while driving. As a result, engine safety improves.
Carbon Fiber Housing with Durable Design
The AEM 30-5701 is housed in a lightweight carbon fiber composite enclosure. This design provides strength without adding excess weight. Therefore, it performs well in demanding environments.
In addition, the display features IP65 water resistance. Because of this, it can handle open cockpit, marine, and motorsport use. As a result, durability is improved across multiple applications.
Plug and Play OBDII Compatibility with Expandability
The AEM 30-5701 accepts channels from 2008-up factory ECUs using a plug and play OBDII CAN adapter cable. It also supports multiple CAN bus connections. Therefore, it works with a wide range of systems and sensors.
In addition, you can expand the system with modules such as GPS, accelerometers, and EGT sensors. Because of this, the display grows with your setup.
Complete Digital Dash Solution for Performance Vehicles
The AEM CD-7L Carbon Logging Display 30-5701 provides monitoring, logging, and customization in one system. It improves data visibility and performance tracking. Therefore, it is ideal for racers, enthusiasts, and performance builds.
If you want a high-end digital dash with advanced features and expandability, this system is a proven solution.
Explore more upgrades for your truck here: Powerstroke, Cummins, Duramax
| Weight | 3 lbs |
|---|---|
| Dimensions | 13 × 10 × 3 in |
Features
- Full color 7″ screen with 800×480 resolution
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Layout files interchangeable with all versions of the CD-5 Carbon

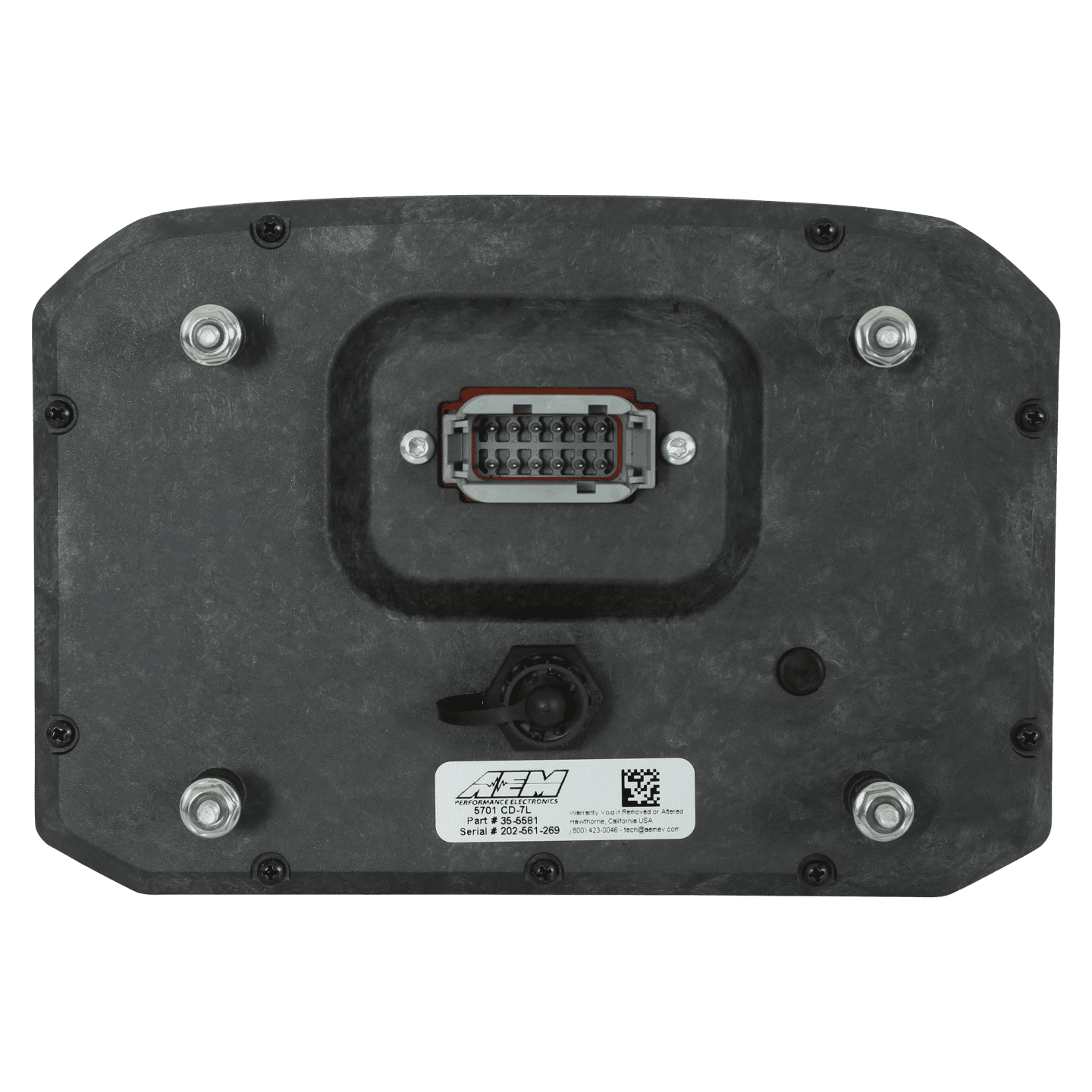

- Wiring interface/harness is identical to the CD-5 Carbon
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Total display weight of 20.9 oz. / 595 grams
- IP65 water resistance – open cockpit, marine and motorcycle safe
- Accepts channels from two separate user programmable CAN bus connections – works with AEMnet enabled devices and non-AEM 3rd party devices side by side
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs

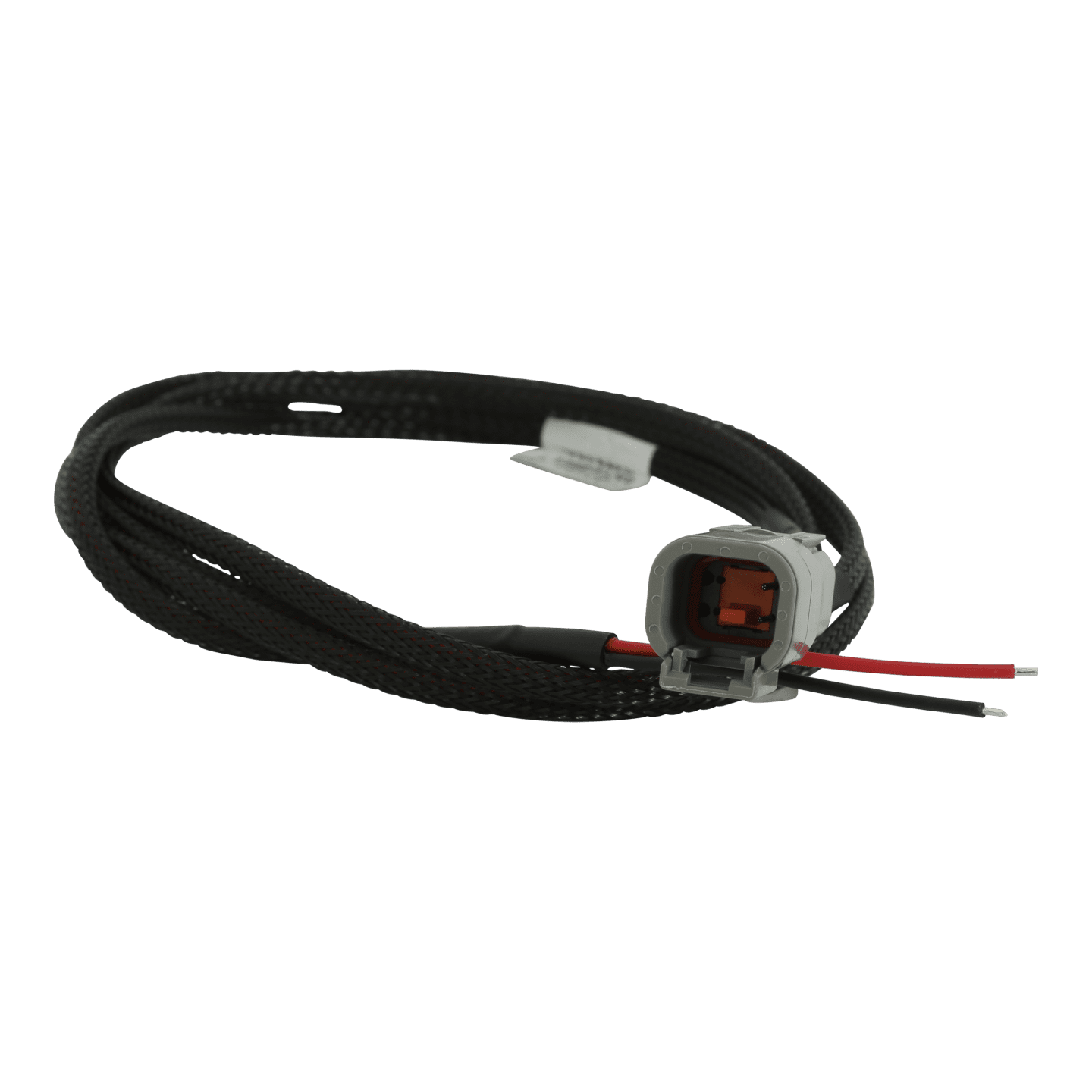

- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Available with or without on-board 20Hz GPS receiver and antenna
- Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)

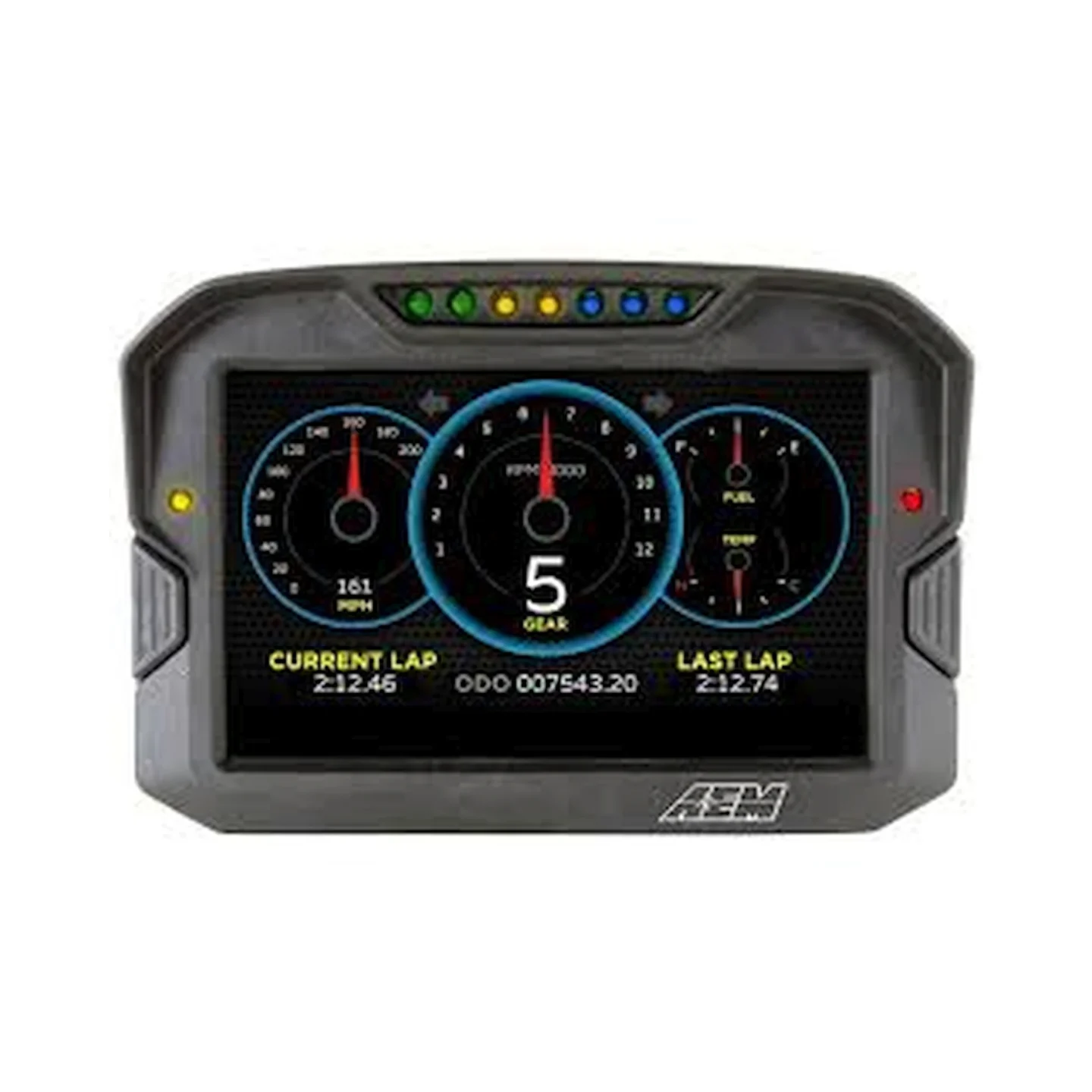

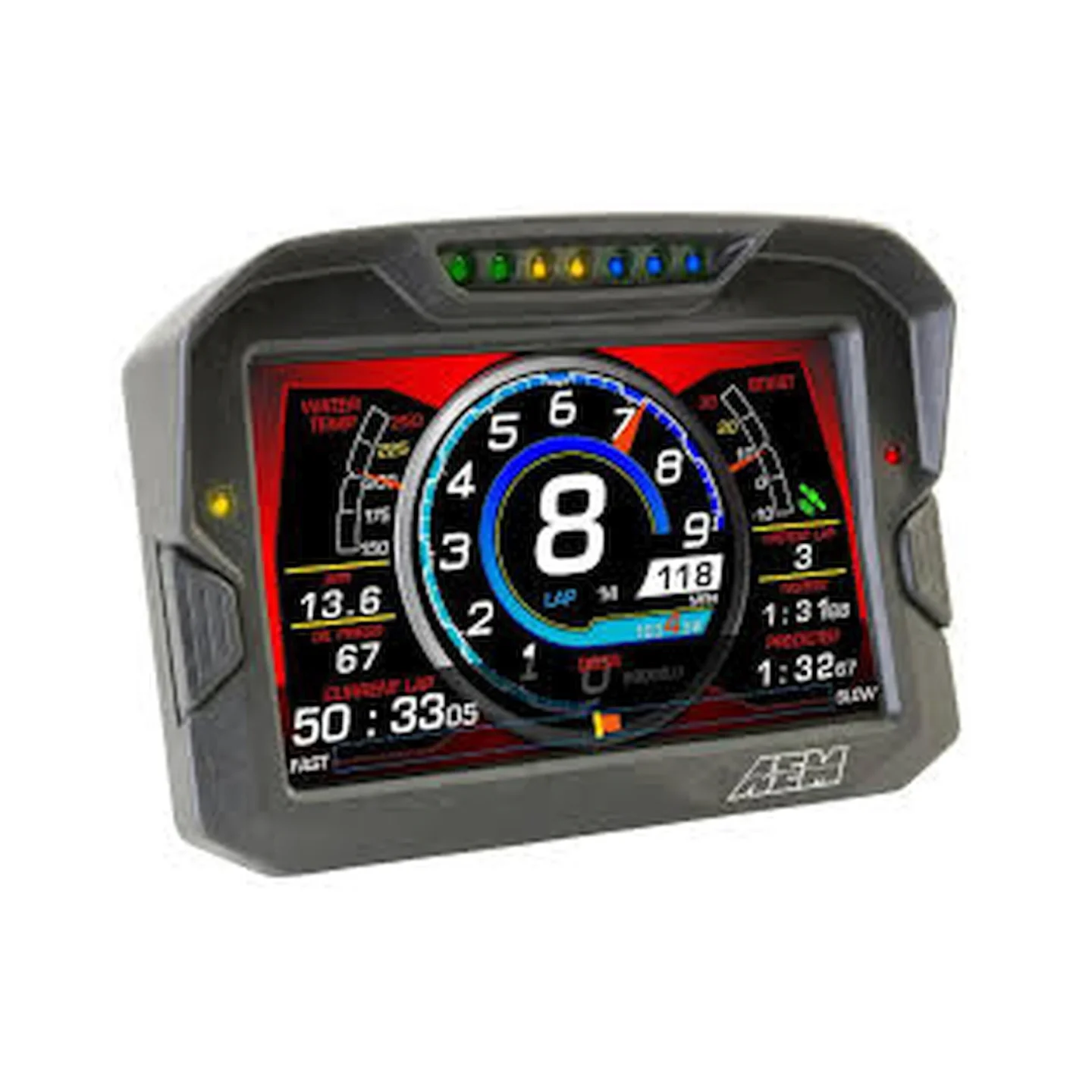

- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Use included page layouts and input your channels and text, or create your own from scratch
- Free DashDesign Graphics Editor software
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- Two programmable LEDs
- Odometer function
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- ‘Headlight-in’ connection dims the dash and LEDs during night operation
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Convert CAN bus channel values to user-defined text in multiple languages
