Sinister Diesel STC HPOP Fitting Kit (SDHPOPFK04) for 2004-2007 Powerstroke 6.0L
$98.79
Out of stock
The Sinister Diesel 6.0 Powerstroke STC HPOP Fitting Update Kit addresses a known issue with the “Snap-To-Connect” (STC) fitting used in 2005 and newer Powerstroke Diesel engines. The original two-piece fitting design can flex, causing seal wear, leaks, or even complete separation, leading to hard starts, no starts, or sudden engine stalls.
Description
The Sinister Diesel 6.0 Powerstroke STC HPOP Fitting Update Kit was the redesign of the high-pressure oil pump for the 2005 and newer Powerstroke Diesel Engines. The “Snap-To-Connect” or STC Fitting used to connect the high-pressure oil pump to the oil supply branch tube has been problematic. The two-piece fittings have a tendency to flex causing wear on the seal and the locking ring resulting in leaks and occasionally the complete separation of the fitting. When a leak occurs at this fitting, the engine may be difficult to start or may not start at all. Depending on the severity of the leak the engine may stall, sometimes abruptly and without warning, creating a dangerous situation for the driver and other motorist. This kit solves the problem by including a bracket designed to support the fitting and branch tube and preventing any movement of the branch tube and eliminating the possibility of the fitting to become separated.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 10 × 5 × 4 in |
| Brand | |
| Manufacturer |
Fitment
2007 Ford F-250 6.0L
2007 Ford F-350 6.0L
2006 Ford F-250 6.0L
2006 Ford F-350 6.0L
2005 Ford F-250 6.0L
2005 Ford F-350 6.0L
2004 Ford F-250 6.0L
2004 Ford F-350 6.0L
2004 Ford Excursion 6.0L
2005 Ford Excursion 6.0L
2006 Ford Excursion 6.0L
2007 Ford Excursion 6.0L
Features
- Most current and up to date “Snap-To-Connect” kit
- Design specifically for:
- Ford 6.0L Power Stroke V8
- Ford 4.5L Power Stroke V6
- International VT-375
- International VT-275
Includes

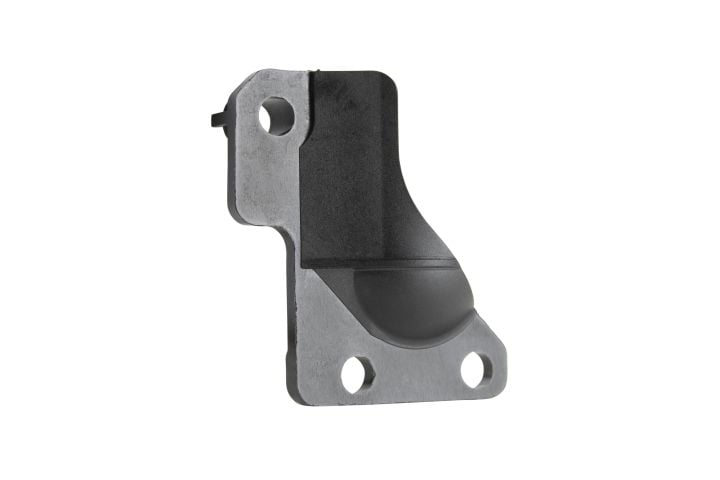

- (1) Support Bracket
- (1) Hydraulic Pump Seal Kit

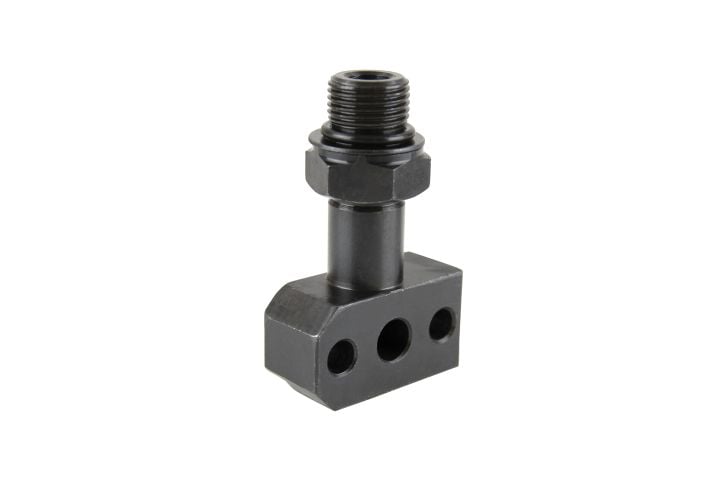

- (1) Branch Tube Adapter – Male
- (1) HPOP Adapter Fitting – Female

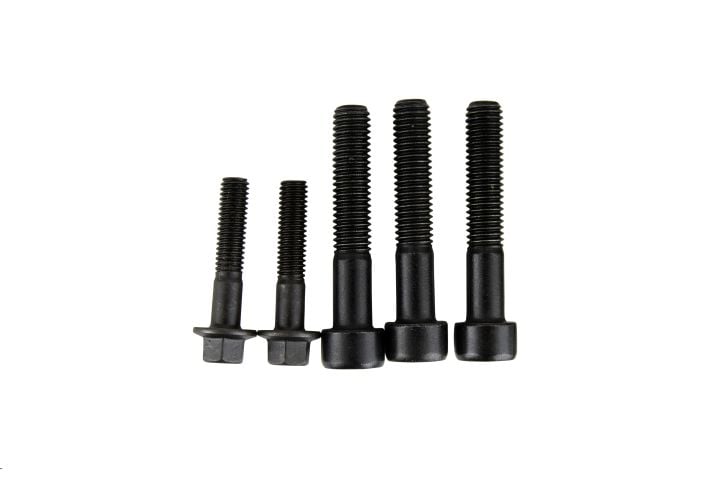

- (2) M6x35mm Branch Tube Bolts
- (2) M8x60mm Pump Bolts
- (1) M8x45mm Pump Bolts
