Fleece SureFlo® Performance Sending Unit (FPE-SF-CUMM-2010) For 2010 Cummins 6.7L
$397.95

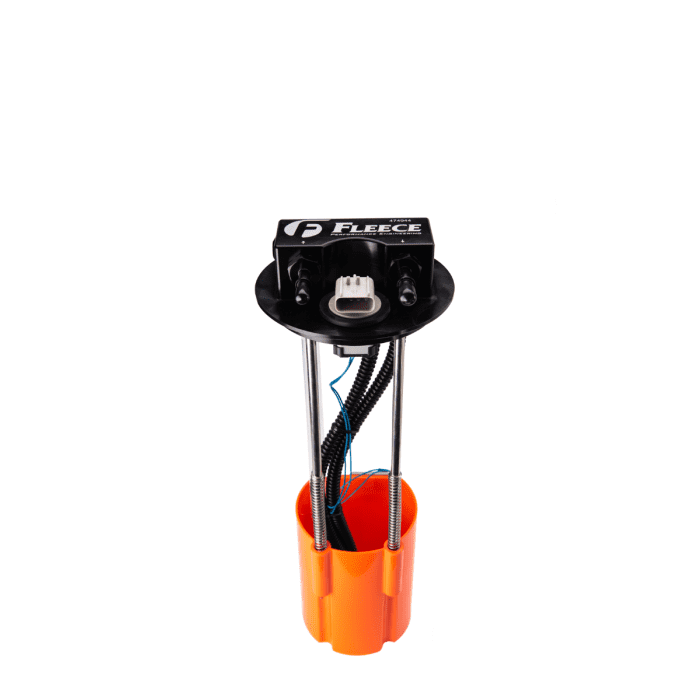

The Fleece SureFlo Performance Sending Unit FPE-SF-CUMM-2010 installs directly into the stock sending unit location on 2010 Cummins 6.7L trucks. It works with externally mounted aftermarket lift pumps and removes the need for draw straws or fuel tank sumps. The SureFlo bucket system helps eliminate the common ¼ tank fuel issue. It also includes a billet aluminum cap, new fuel level electronics, and universal –8 AN ports for custom fuel system setups.
Fleece SureFlo Performance Sending Unit (FPE-SF-CUMM-2010) For 2010 Cummins 6.7L
The Fleece SureFlo Performance Sending Unit FPE-SF-CUMM-2010 helps solve fuel delivery problems when running an external lift pump on a 2010 Cummins 6.7L truck. IMPORTANT SureFlo Sending Units DO NOT contain a pump. They are only intended for vehicles that use an external lift pump or for vehicles that did not originally include a lift pump. If your application requires a pump, select the correct application on the PowerFlo Lift Pump category page.
Problem
Many aftermarket pumps mount external to the fuel tank. Because of this, owners often install a draw straw or drill the fuel tank for a sump. However, both options create drawbacks.
These setups commonly create the ¼ tank problem. When fuel levels drop, the pump can pull air into the fuel system. As a result, cavitation can occur and fuel delivery becomes inconsistent.
Fleece SureFlo Performance Sending Unit Solution
The Fleece SureFlo Performance Sending Unit FPE-SF-CUMM-2010 works with aftermarket lift pumps and fits directly into the stock sending unit location. It also uses factory style quick disconnects that connect to the stock fuel lines at the tank. Because of this design, installation remains clean and requires no cutting or drilling of the tank.

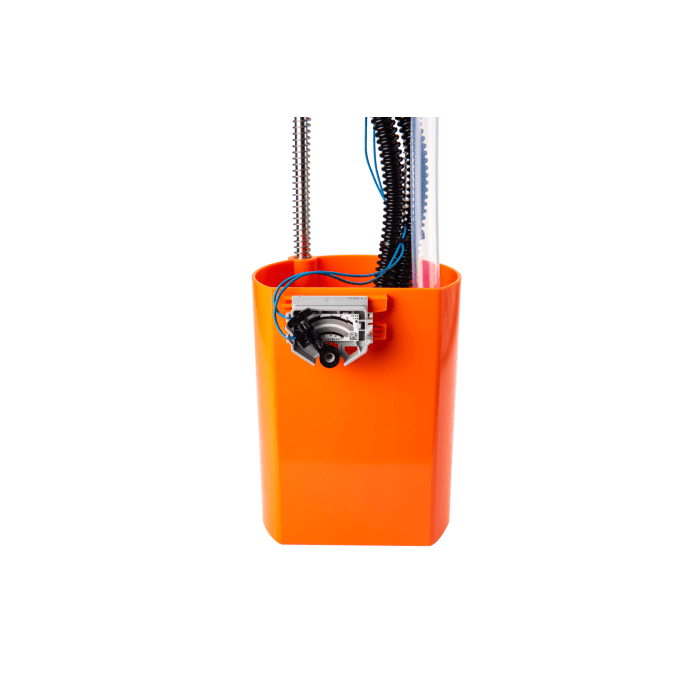

SureFlo Bucket Fuel Delivery Design

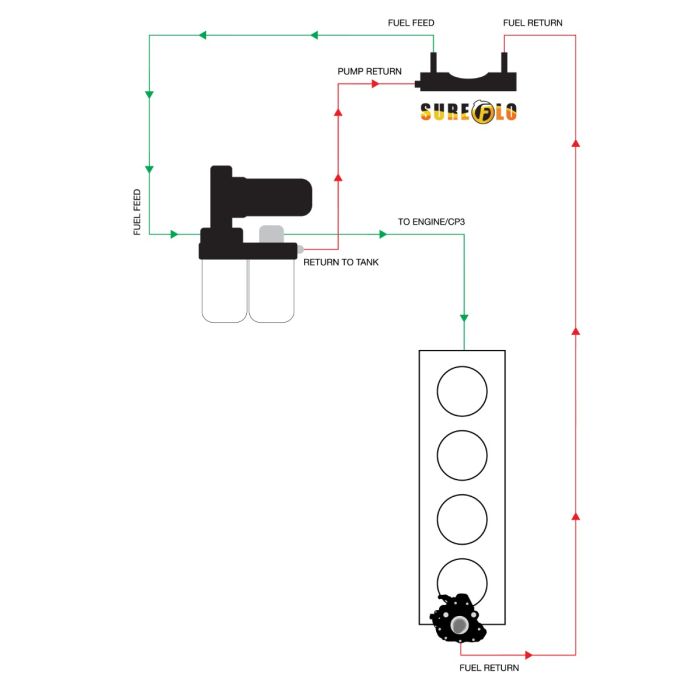

SureFlo draws fuel from, and returns fuel to, the bucket assembly at the base of the unit. Because of this design, the pump pulls fuel instead of air. As a result, the system helps eliminate the common ¼ tank problem.

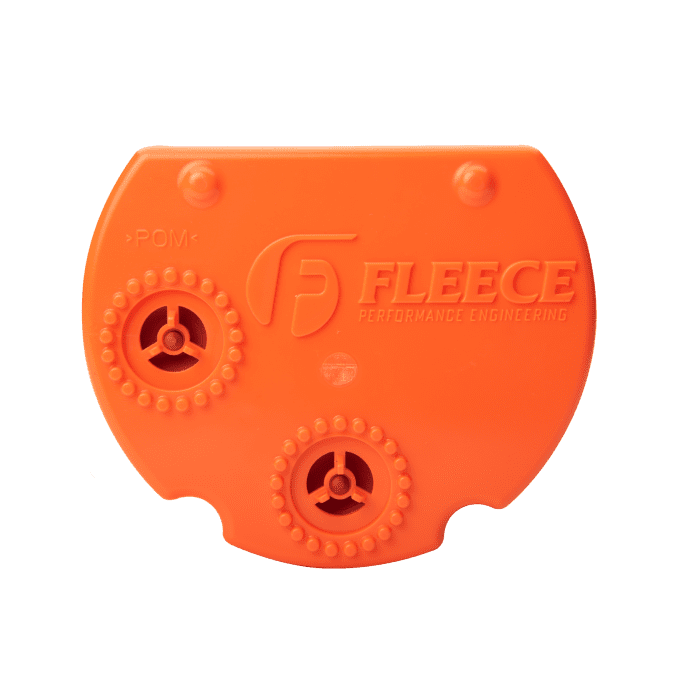

In addition, the SureFlo bucket includes one way check valves. These valves allow fuel to flow into the bucket more easily when fuel levels drop.
Additional SureFlo Sending Unit Benefits
The Fleece SureFlo Performance Sending Unit FPE-SF-CUMM-2010 also works well for trucks that originally did not include an in tank pump. It helps repair a malfunctioning level sender. It also works well for trucks that want to run custom fuel lines directly to the tank.
Cross-Reference
Year — FPE Part Number — Replaces Dodge/Ram OE Part Number
2010 — FPE-SF-CUMM-2010 — 68084965AB
Application Notes
SureFlo performance sending units are designed for use in conjunction with an aftermarket externally mounted fuel pump OR as a replacement sending unit for trucks originally equipped without an in-tank low pressure lift pump.
Reference our fitment data for use in Titan and S&B aftermarket fuel tanks.
For optimal performance, this product has been tested to work with aftermarket lift pumps including AirDog II-5G with flow rates up to 220 GPH and Fass with flow rates up to 100 GPH.
Protected under US Trademark Reg. No. 6,878,858 and US Patent No. D1,114,168.
Warranty
1 Year Limited Parts Warranty
For more upgrades and components, browse our full selection of Cummins parts.
| Weight | 9.0 lbs |
|---|---|
| Dimensions | 23.0 × 13.0 × 11.0 in |
Fitment
2010 Ram 2500/3500 6.7L 24V Cummins
Features
PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump. Each of these has some pretty significant drawbacks including the ¼ tank issues that result in cavitation of the pump when you draw air into the fuel system.
SOLUTION: SureFlo performance sending units are designed to work with aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available, and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded ¼ tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in at lower levels.
Our SureFlo performance sending units are also a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank.
Features
- OEM style fitment that requires no tank cutting or drilling
- New fuel level electronics and fuel float

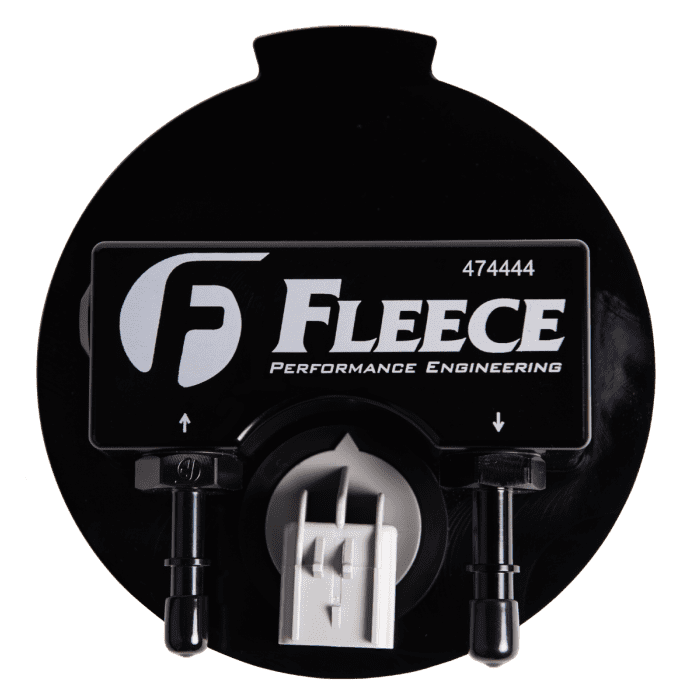

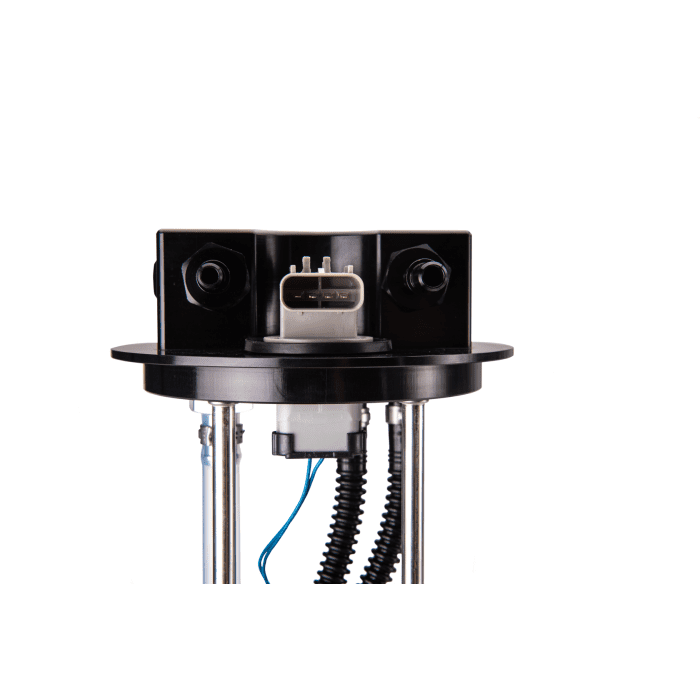

- Heavy duty billet aluminum cap
- Universal -8 AN ports for professionally plumbing a custom fuel setup
- New O-ring or flange seal
Cross-Reference
| Year | FPE Part Number | Replaces Dodge/Ram OE Part Number |
| 2010 | FPE-SF-CUMM-2010 | 68084965AB |
Application Notes
*SureFlo performance sending units are designed for use in conjunction with an aftermarket externally mounted fuel pump OR as a replacement sending unit for trucks originally equipped without an in-tank low pressure lift pump.
** Reference our fitment data for use in Titan and S&B aftermarket fuel tanks.
*** For optimal performance, this product has been tested to work with aftermarket lift pumps including AirDog !!-5G with flow rates up to 220 GPH and and Fass with flow rates up to 100 GPH.
Protected under US Trademark Reg. No. 6,878,858 and Patents Pending
Installation
*SureFlo performance sending units are designed for use in conjunction with an aftermarket externally mounted fuel pump OR as a replacement sending unit for trucks originally equipped without an in-tank low pressure lift pump.
** Reference our fitment data for use in Titan and S&B aftermarket fuel tanks.
*** For optimal performance, this product has been tested to work with aftermarket lift pumps including AirDog !!-5G with flow rates up to 220 GPH and and Fass with flow rates up to 100 GPH.
