Edge EvoHT2 with ECM Unlock Tool (26402) for 2017-2019 Duramax L5P
$899.95
The Edge EvoHT2 handheld tuner delivers performance tuning for 2017–2023 L5P Duramax trucks. The device includes the Edge Locksmith tool to unlock the ECM and TCM through the OBDII port. Drivers can install towing, economy, and performance calibrations with gains up to 150 horsepower and 350 lb-ft of torque. The tuner also includes diagnostic tools, speedometer calibration, and manual DPF regeneration capability. It provides an affordable way to add reliable performance to L5P Duramax trucks.

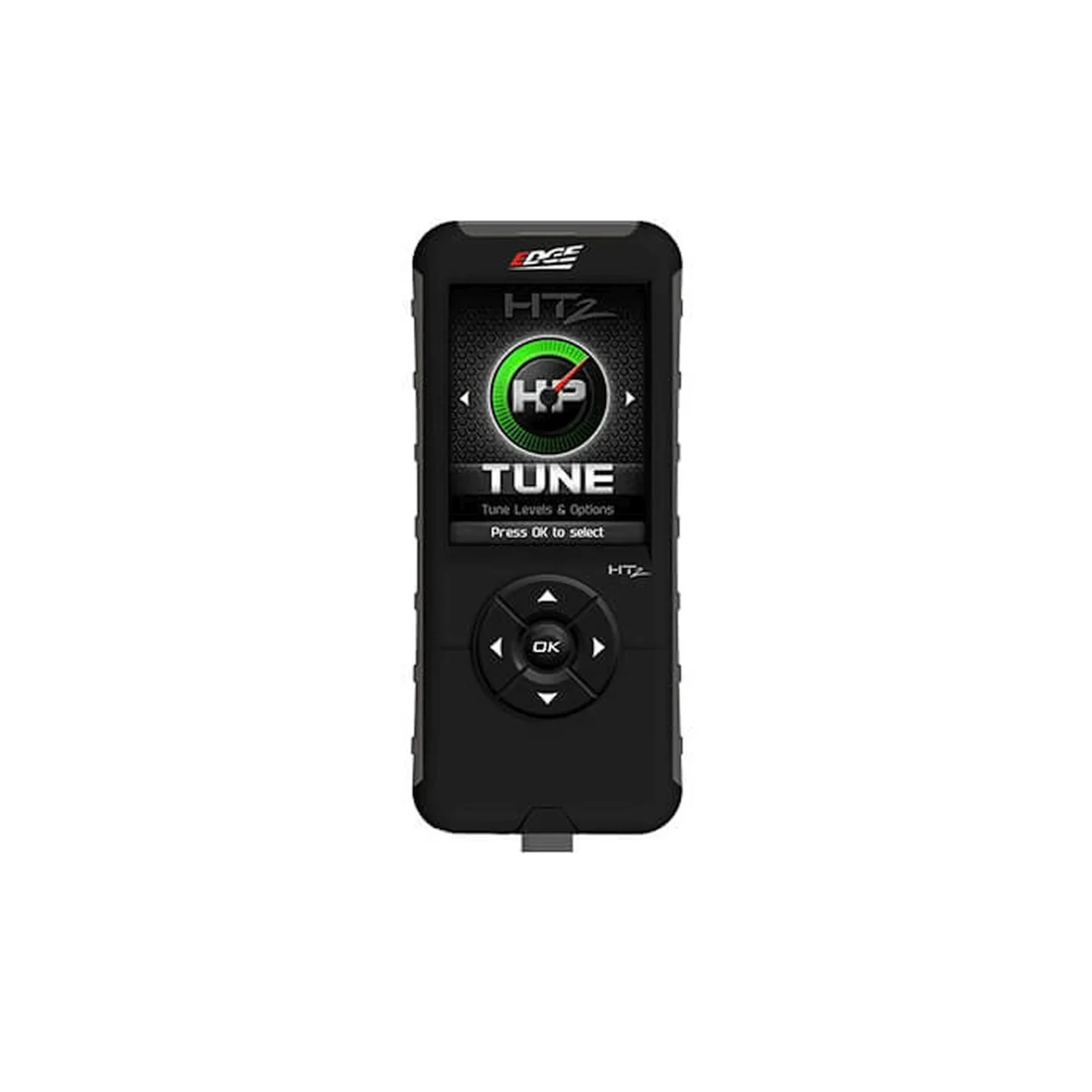

Edge EvoHT2 L5P Duramax Handheld Tuner
The Edge EvoHT2 handheld tuner provides an easy and affordable way to add performance tuning to 2017–2023 Chevy Silverado and GMC Sierra trucks equipped with the 6.6L L5P Duramax. This handheld device flashes the factory ECM with preloaded tuning calibrations designed for towing, daily driving, fuel economy, and performance. As a result, drivers gain stronger throttle response, improved drivability, and increased towing capability.

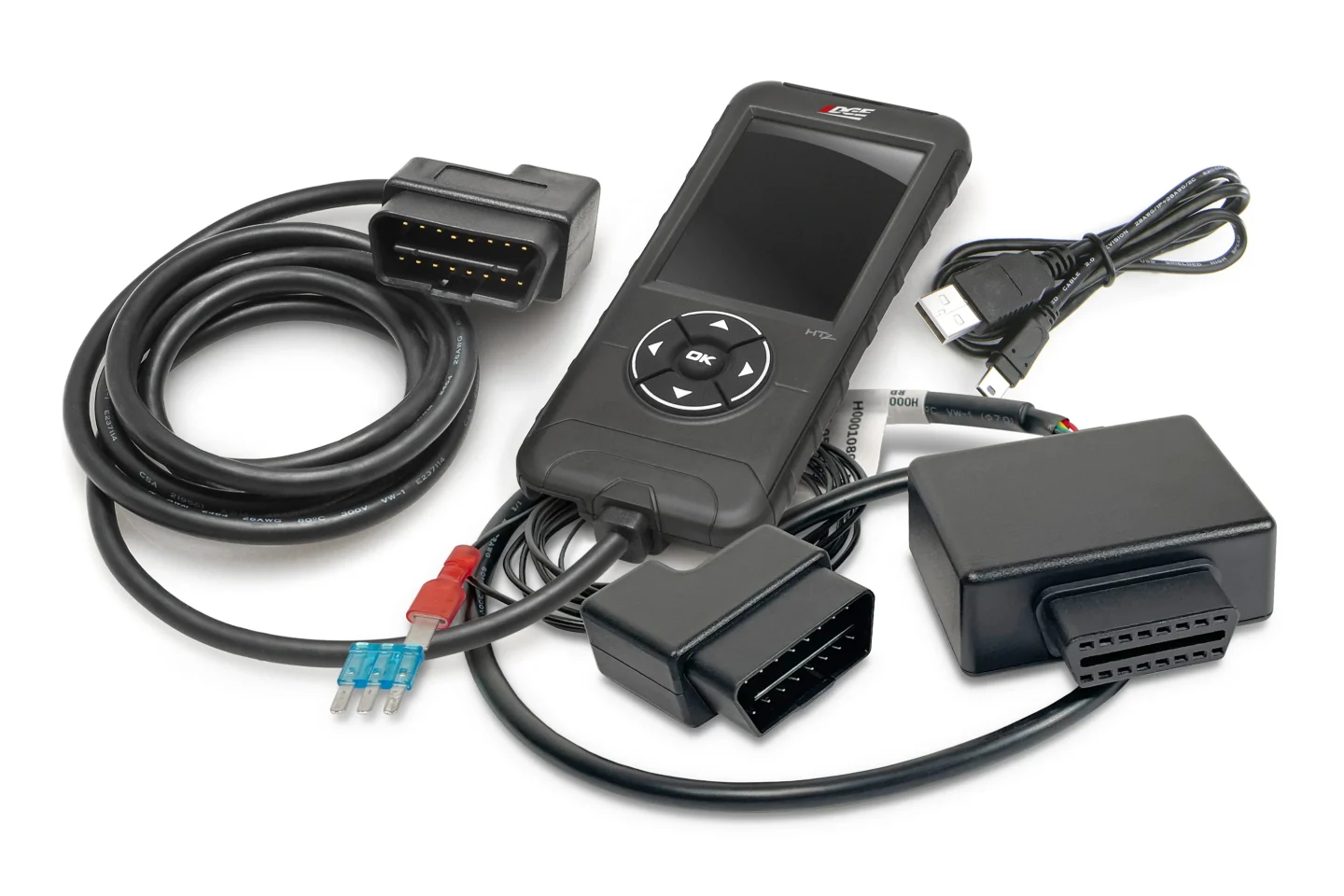

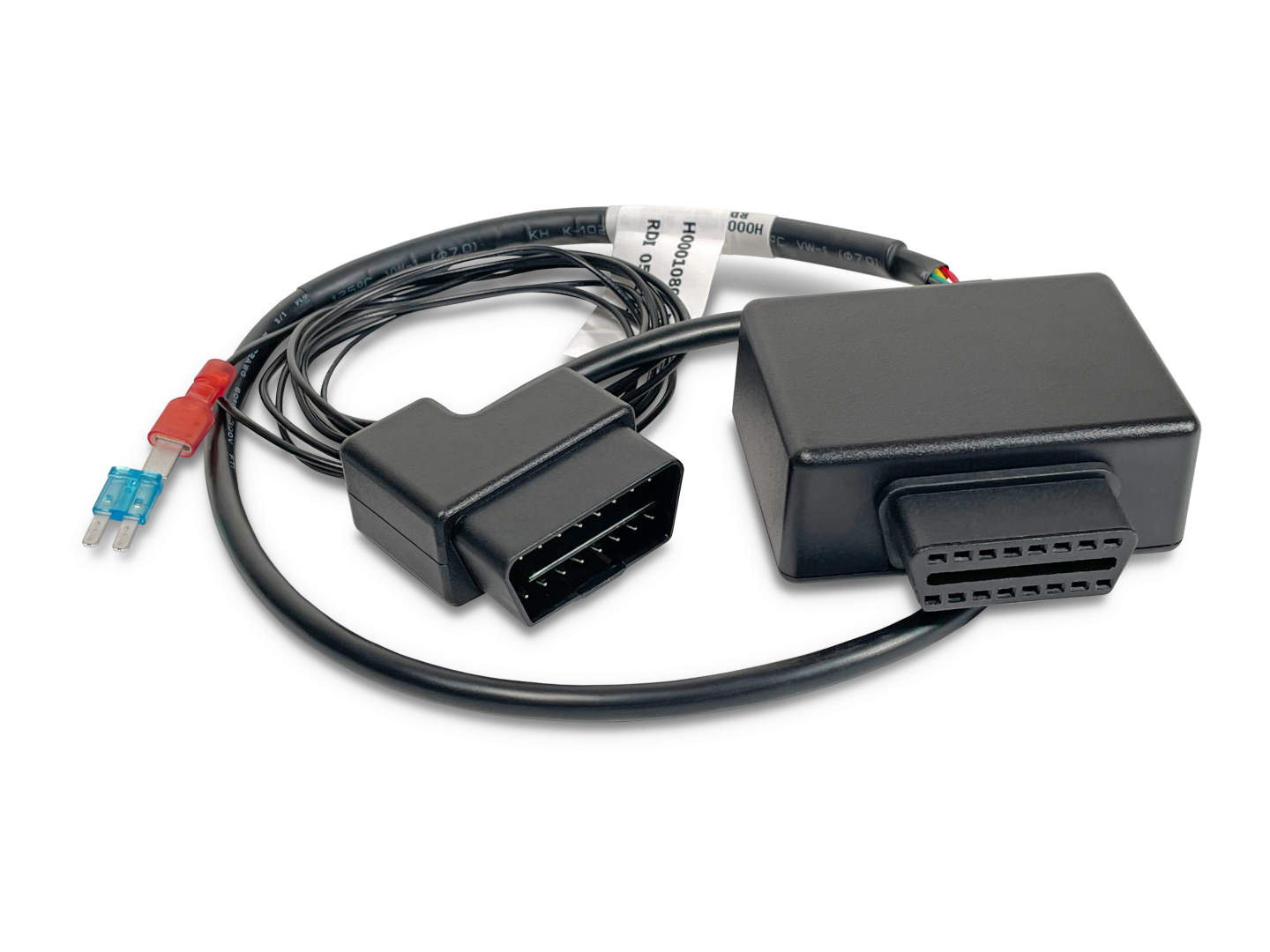

The EvoHT2 works with the Edge Locksmith tool, which is included with the kit. The Locksmith unlocks the factory ECM and TCM through the OBDII port. Once unlocked, the EvoHT2 allows drivers to install performance calibrations directly into the truck. After the flash process is complete, the device can be unplugged and stored away.
Power Gains and Tuning Levels
The Edge EvoHT2 L5P Duramax tuner offers multiple tuning levels designed for different driving conditions. These calibrations improve power delivery and help optimize engine performance.
Heavy Trailer tune provides up to 75 horsepower and 150 lb-ft of torque
Economy tune provides up to 100 horsepower and 200 lb-ft of torque
Light Trailer tune provides up to 125 horsepower and 250 lb-ft of torque
Extreme tune provides up to 150 horsepower and 350 lb-ft of torque

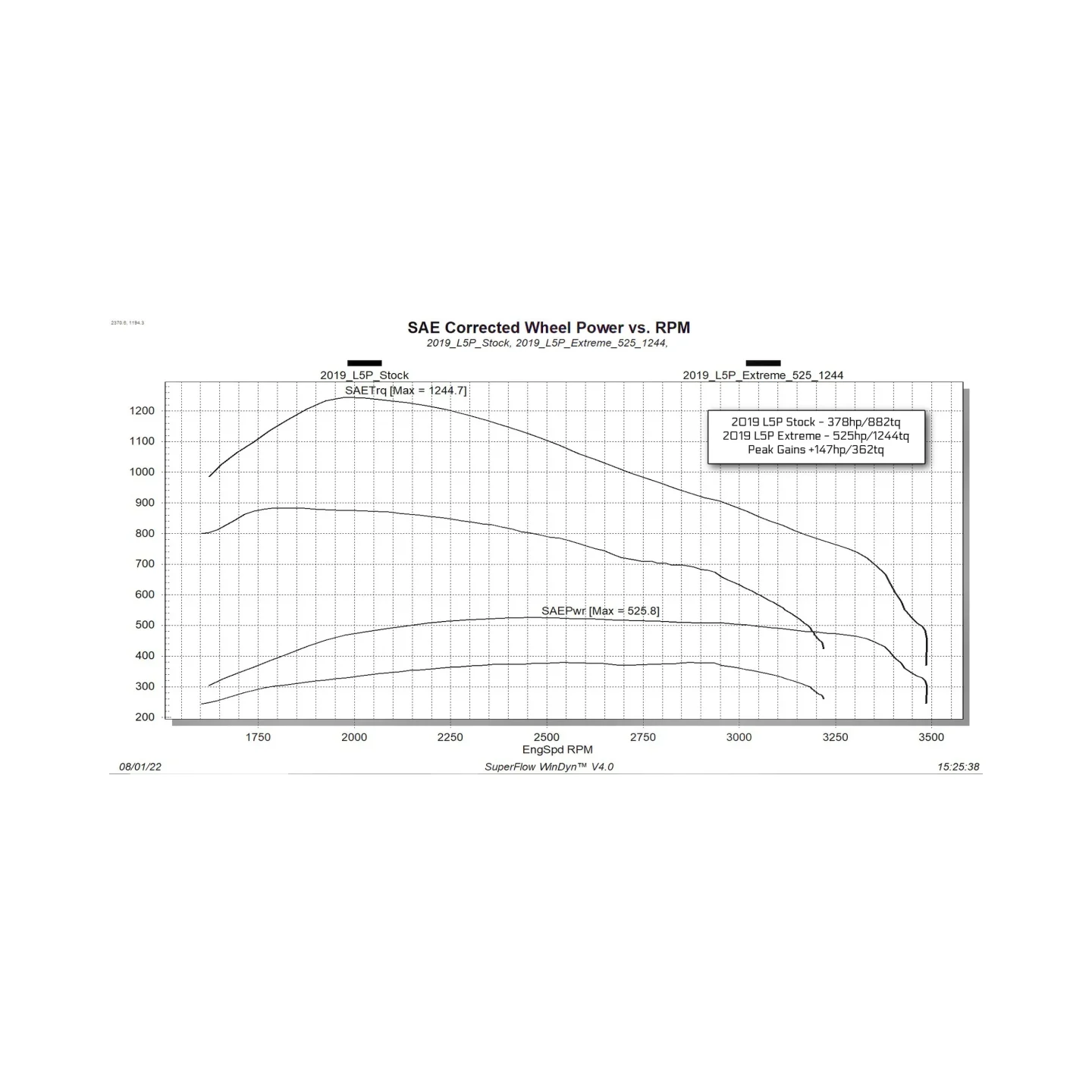

These gains improve acceleration, towing power, and overall drivability. In testing, trucks equipped with the EvoHT2 have shown improved quarter-mile performance and faster acceleration under load.
Additional Features and Vehicle Controls
The Edge EvoHT2 handheld tuner also includes several useful vehicle adjustments and controls. Drivers can recalibrate the speedometer for tire sizes between 26 and 38 inches. The system also allows adjustment of the Idle Up feature from 600 to 1800 RPM.
Drivers can also use the Throttle Boost feature to increase pedal sensitivity. This adjustment can improve throttle response by 5–50 percent over stock settings.
Additional features include TPMS setting adjustments, Allison transmission relearn capability, and manual DPF regeneration control. These tools provide greater control over vehicle performance and maintenance.
Diagnostics and Compatibility
The EvoHT2 also works as a diagnostic tool. Drivers can read and clear diagnostic trouble codes directly from the device. As a result, drivers can identify issues quickly without visiting a repair shop.
This handheld tuner works with 2017–2023 L5P Duramax trucks. A PC with the Edge Update Agent software is required to complete the tuning process.
The device can unlock and tune only one vehicle. Once the ECM and TCM unlock process occurs, the device becomes locked to that VIN. Although drivers can return the truck to the factory calibration, the unlock process cannot be reversed.
The calibrations are designed to maintain factory emissions equipment and support DPF operation. However, the tuner does not support the removal of emissions equipment.
Key Features
Handheld flash tuner for 2017–2023 L5P Duramax trucks
Includes Edge Locksmith tool for in-vehicle ECM and TCM unlock
Multiple tuning levels for towing, economy, and performance
Power gains up to 150 horsepower and 350 lb-ft of torque
The throttle boost feature adjusts pedal sensitivity from 5–50 percent over stock
Calibrate the speedometer for tire sizes from 26 to 38 inches
Adjust Idle Up feature from 600 to 1800 RPM
Command manual DPF regeneration cycle
Adjust TPMS settings
Allison transmission relearn capability
Read and clear diagnostic trouble codes
Improves throttle response and towing performance
Designed for emissions-compliant operation with factory emissions systems
| Weight | 2 lbs |
|---|---|
| Dimensions | 6.5 × 5 × 2.5 in |
Fitment
2017-2019 Duramax L5P
Features
- In-vehicle ECM unlock with industry’s first ECM unlock tool
- Remember last button setting for exhaust brake, tow/haul, and grade braking
- 1.3 seconds faster in the 1/4-mile, gained 8mph!
- Throttle Boost feature allows user adjustable pedal sensitivity (5-50% iover stock)
- Adjust TPMS settings
- Read and clear DTC’s
- Calibrate speedometer for tire sizes 26-38″
- Adjust Idle Up feature for 600-1800rpms
- Command manual DPF regeneration cycle
- Heavy Trailer 75hp/150tq, Economy 100hp/200tq, Light Trailer 125hp/250tq, Extreme 150hp/350tq
- Allison Transmission Relearn
- Great for daily driving and towing performance
- Tuning has passed all in-house emissions testing with CARB EO submissions being processed
- Calibrations developed to offer clean, efficient DPF friendly performance
- Most cost effective way to add performance tuning to your L5P on the market today
- Great option for owners already running our popular Insight CTS3 monitor but now crave added power
Warning
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
