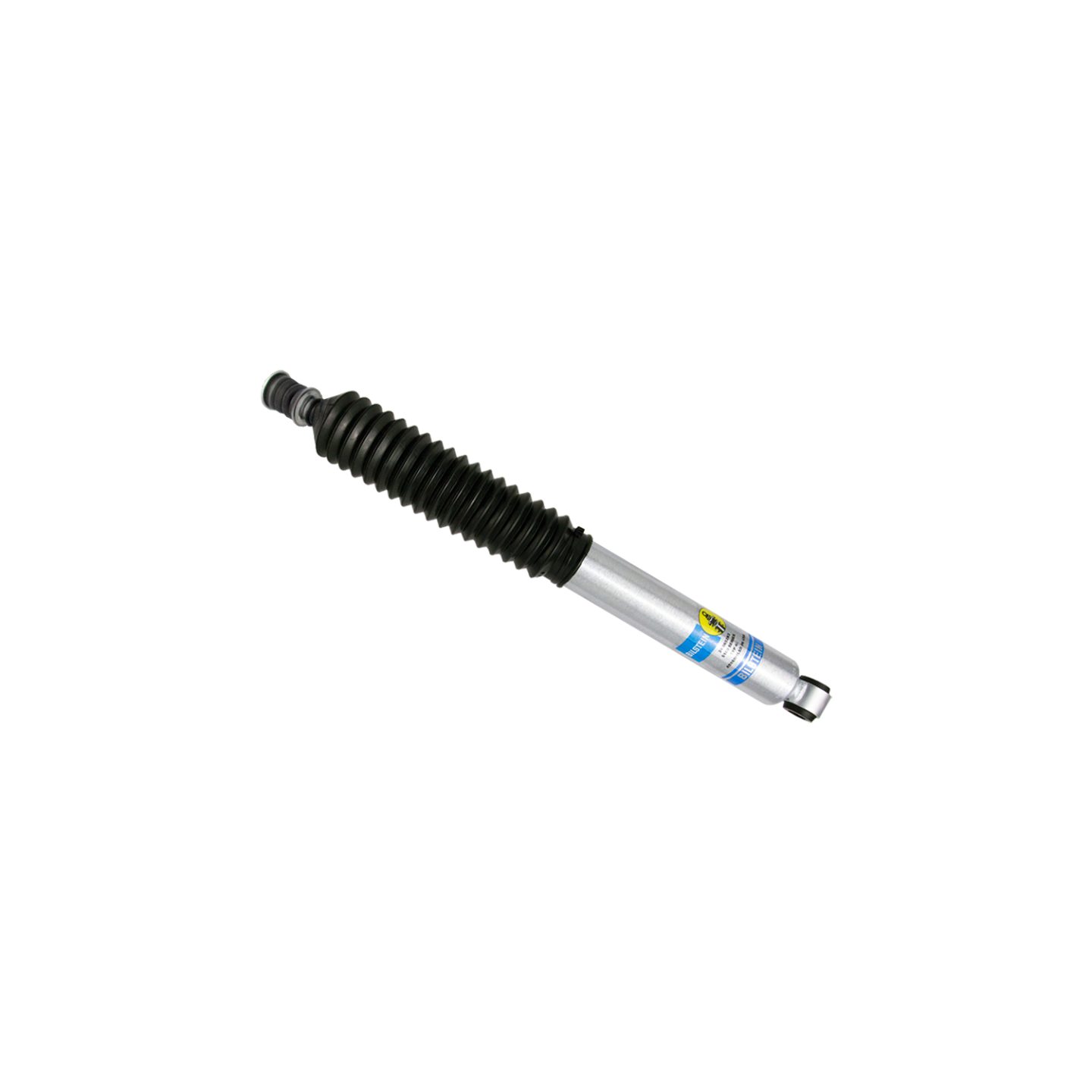

Bilstein Front B8 5100 Lifted Shock (24-065283) for 1999-2016 Powerstroke 6.0L / 6.4L / 6.7L / 7.3L

Features

Monotube Design:

Much like its predecessor the Bilstein 4600 series, the 5100 series also features a monotube design, providing consistent damping and better heat dissipation.

Zinc Plated Finish:

The Bilstein 5100 series shocks have a unique and stylish zinc-plated finish for superior corrosion resistance. Making them durable in conditions favored by Bilstein Lifted, Off-Road and Drivers who tow.

High-Flow Piston:

The 5100’s larger diameter and high-flow piston design provides better control and responsiveness for your truck or SUV.

Velocity-Sensitive Valving:

This feature automatically adjusts to the road conditions, providing optimal damping whether you’re driving on the highway or off-road.

Tuned Specifically for Your Lifted Vehicle:

The Bilstein 5100 shock is specifically tuned for Trucks and SUV’s with lift kits, ensuring that the shocks complement the altered suspension geometry.

Benefits of the Bilstein 24-065283

Enhanced Off-Road Capability:

The 5100 series is designed for the ability to go off-road, offering better control and stability over rough roads and terrain, but still gives you a consistent smooth on road feel.

Improved Ride Comfort for Lifted, Off-Road or Towing:

These shocks provide a smooth and controlled ride, taking on bumps and vibrations effectively and gives you greater control on uneven roadways.

Durability and Longevity:

The zinc-plated finish and Bilstein’s high-quality materials ensure that the shocks are resistant to corrosion and wear, offering long-lasting performance.

The Best Handling and Stability:

The high-flow piston and velocity-sensitive valving improve the vehicle’s handling and stability enabling the driver to have greater control and stability.

Specifications

• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Collapsed Length (IN): 13.27
• Collapsed Length (MM): 337.0
• Extended Length (IN): 21.52
• Extended Length (MM): 546.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 5/8in
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Stem
