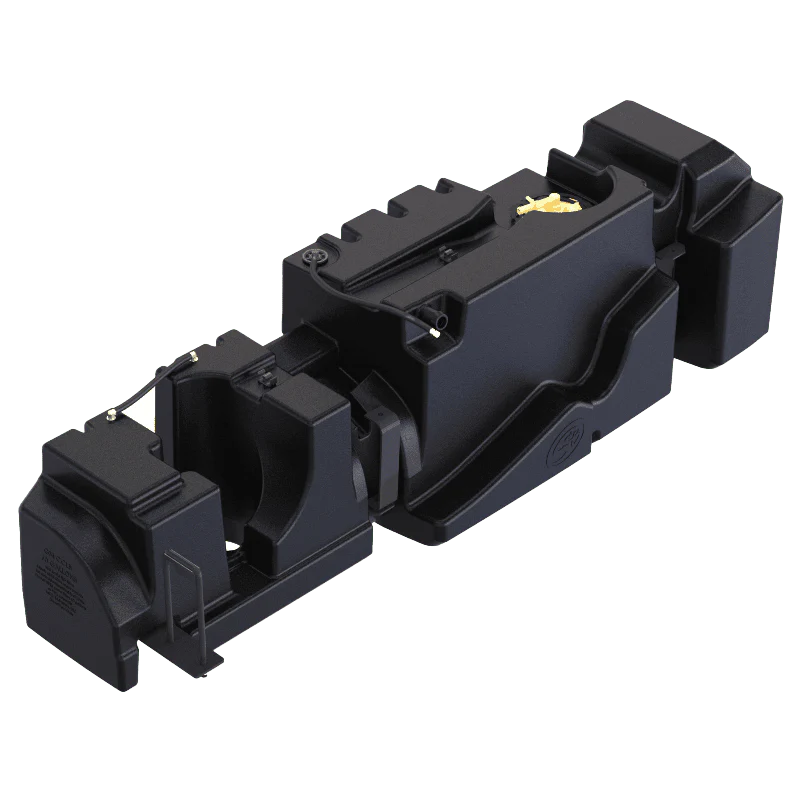

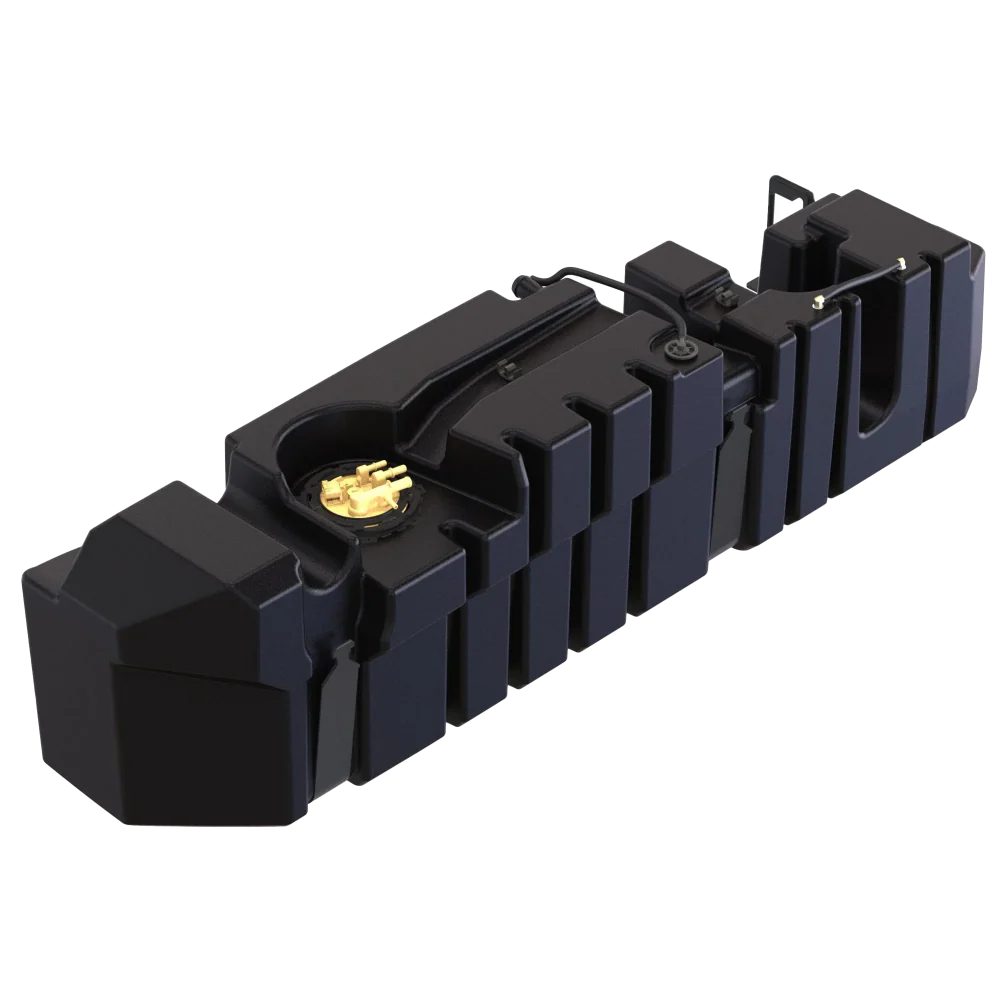

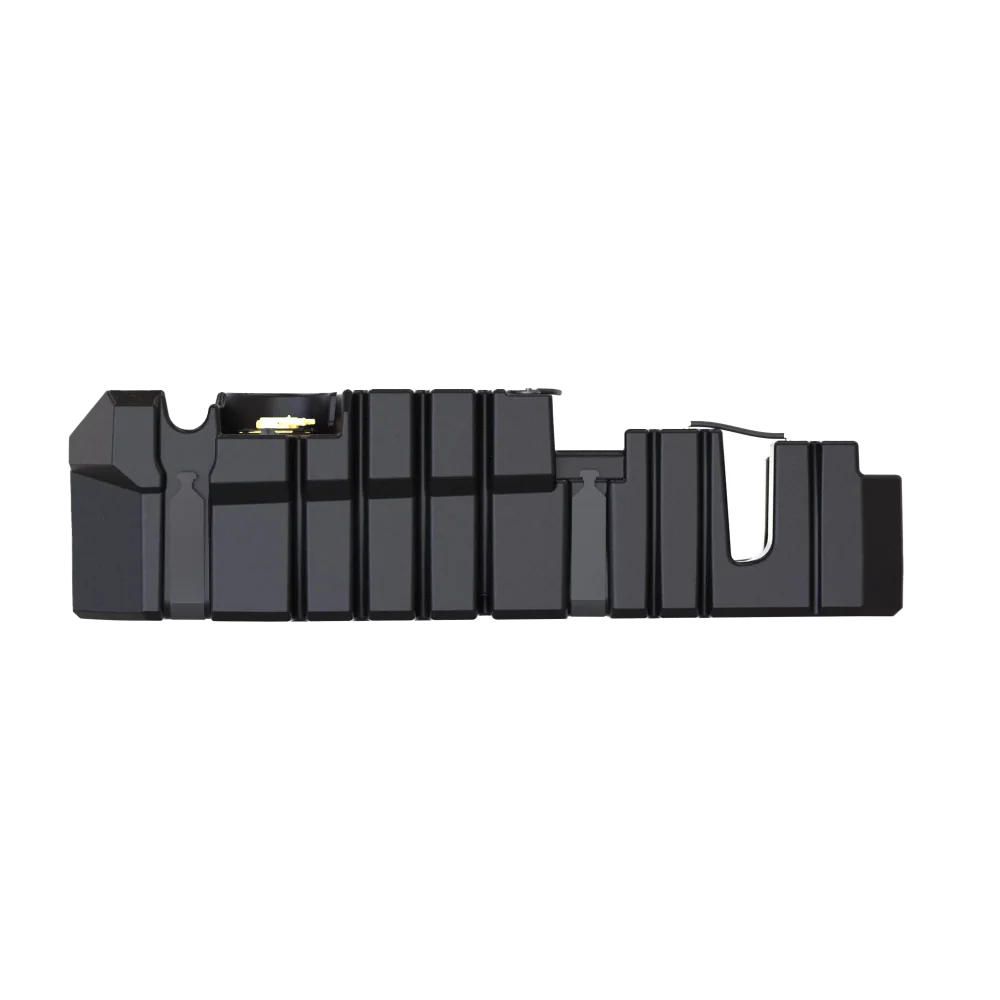

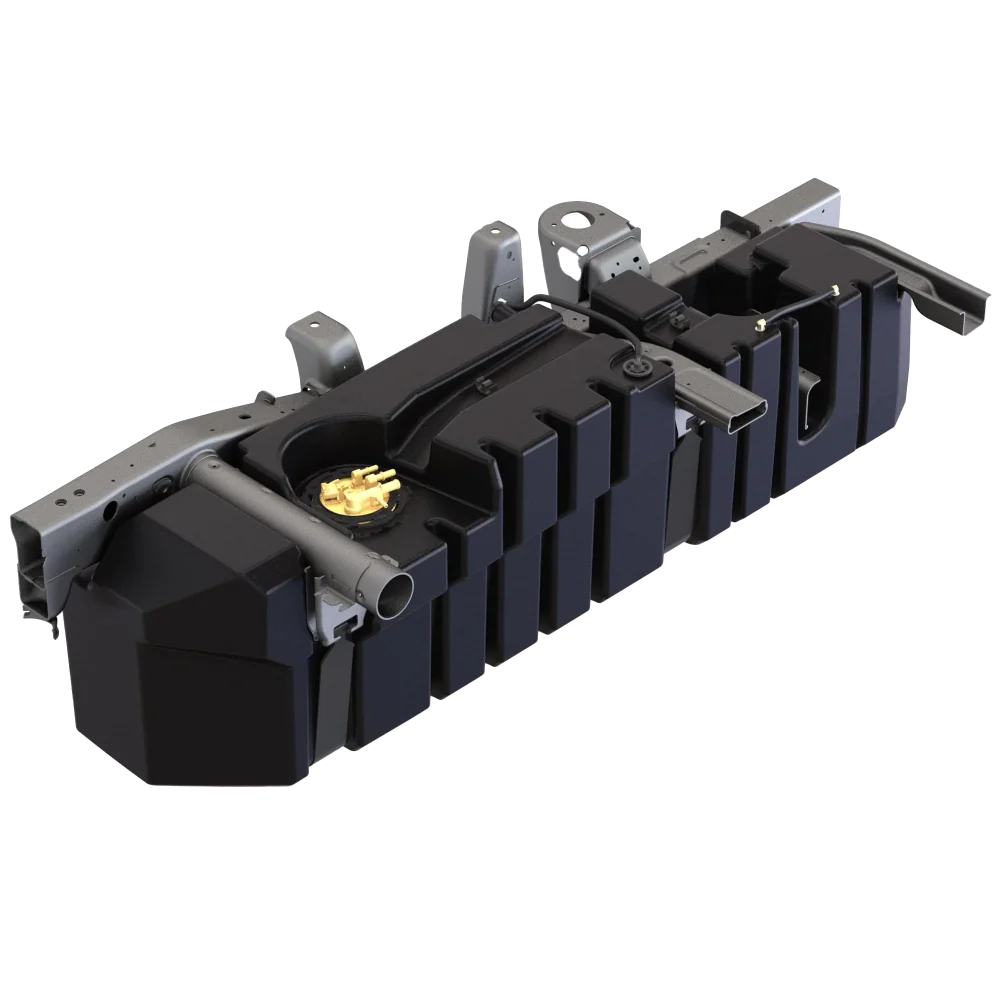

S&B 60 Gallon High-Capacity Fuel Tank (10-1016-1) for 2020-2023 Duramax L5P Crew Cab Long Bed 6.6L

Name: S&amp;B 60 Gallon High-Capacity Fuel Tank (10-1016-1) for 2020-2023 Duramax L5P Crew Cab Long Bed 6.6L
Brand: S&amp;B Tanks
SKU: 10-1016-1
Availability: InStock

Description

Important Note about the Fuel Gauge Operation:

The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. This occurs with all aftermarket high-capacity fuel tanks.
The fuel gauge will operate properly. When you fill up your tank, the fuel gauge will remain on full until about 4-5 gallons have been used and then the gauge will start to move normally. GM trucks monitor for an inoperative fuel gauge, so in some situations, until it starts to move, the truck’s computer will drop the gauge to empty to get the driver’s attention even though your tank is full. The gauge will return to its normal position after restarting the engine. Once the fuel level drops 4-5 gallons from full, the fuel gauge will return to its normal operation.
The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.
The nozzle at high flow fuel stations(truck stops) will not be able to fill automatically.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

Additional information

Weight	80 lbs
Dimensions	90 × 18 × 18 in

Fitment

Year	Make	Model	Engine
2020-2023	Chevrolet	Silverado 2500	6.6L, Diesel, L5P
2020-2023	Chevrolet	Silverado 3500	6.6L, Diesel, L5P
2020-2023	GMC	Sierra 2500	6.6L, Diesel, L5P
2020-2023	GMC	Sierra 3500	6.6L, Diesel, L5P

Features

Compatible with gooseneck and 5th wheel	Yes
Compatible with oe skid plate	No
Drain	No
Ground clearance compare to oe tank	3″ Lower
Oem capacity	36
Sending unit	OEM
Straps included	Yes
Sump	No
Tank type	Midship
Transfer pump ready	Yes

Installation

STEP 1

Loosen the hose clamp and remove the filler hose.

STEP 2

Remove the hose clamp and hose from the main vent line attached to the fuel sending unit. You can reach over the driveline to access this.

STEP 3

Support the bottom of the tank with a floor jack or transmission jack.

STEP 4

Disconnect the blue and white fuel connectors. Please see our install video if you need help with removing these.

https://www.youtube.com/watch?v=vdO4PNBpR0k&t=569s

STEP 5

Remove both fuel tank straps with a 15mm socket.

STEP 6

If you can reach the fuel sending unit electrical connector, you can disconnect it before dropping the tank. If you need more room to disconnect the connector, lower the tank 6″ and disconnect. Slide the red lock out and depress the tab in the middle then slide the connector off.

STEP 7

Hit the locking ring counter clockwise to release the OEM sending unit.

STEP 8

Place the included S&B oring in the oring groove on the S&B Tank. Install the sending unit and make sure to not damage the fuel float.

STEP 9

Press down of the locking ring to get the ring started and then hit the ring close wise until the locking ring goes under the indention in the ring and is locked into place.

STEP 10

Place the included check valve into the filler hose. The arrow on the valve should be facing into the tank.

STEP 11

Take the half strap and attach it to the frame using the oem bolt. The longer and more squared off side will be the side that attaches to the frame. This strap was updated to have a welded on nut instead of the slip nut

STEP 12

Install the included U-Bolt over the frame. Once installed, make sure there is space between the brake lines and U-Bolt. If the brake lines are touching the U-Bolt, call us and don’t install the tank.

STEP 13

Center the hydraulic jack underneath the fuel tank and raise it into position. Lift Install: Hydraulic Jack Floor Install: Floor jack with added support to properly hold tank

STEP 14

Attach the front support strap to the U-Bolt. Then tighten the washers and lock nuts onto the u-bolt.

STEP 15

Install the middle and rear S&B fuel tank straps. Make sure you take the supplied S&B bolt and apply blue lock-tight to the body of the bolt. – 15mm socket and extension

STEP 16

Reinstall fuel filler hose to filler on vehicle side and tighten clamp

STEP 17

Route the 2 5/16″ rollover valve hoses and zip tie them up to the filler.

Step 18 CHECKLIST

This final checklist is very important.

#1 Make sure all nuts are safely fastened and torqued.

#2 Ensure there is proper driveshaft clearance and the straps are tight

#3 Double check fuel line connections, the electrical connection as well as the vent and fill lines.

#4 Lastly, fill the tank full and check for any leaks. If you have any questions, call or text us at 909.675.1313
