Fleece Dual Pump Hardware Kit (FPE-DPK-67-0709) for 2007.5-2009 Cummins 6.7L
$819.00
The Fleece Dual Pump Hardware Kit (FPE-DPK-67-0709) is designed for 2007.5–2009 Dodge Ram trucks with 6.7L Cummins engines. It allows for the installation of a second CP3 fuel pump to boost fuel volume and maintain pressure for high-horsepower builds. Ideal for performance upgrades, the kit includes all necessary mounting hardware but does not include the second CP3 pump or drive components. It’s a reliable and durable solution for enhancing engine performance.
Description
The Fleece Dual Pump Hardware Kit (FPE-DPK-67-0709) is a high-quality solution designed specifically for 2007.5 to 2009 Dodge Ram trucks equipped with the 6.7L Cummins diesel engine. This kit enables the installation of a second CP3 fuel pump, significantly increasing fuel volume to support higher horsepower applications while maintaining optimal fuel pressure. Ideal for performance enthusiasts and those running upgraded injectors or tuning, the Fleece Dual Pump Hardware Kit includes all necessary brackets, pulleys, and hardware for a clean, straightforward installation. Please note that this kit includes hardware only—an additional CP3 pump and drive components must be purchased separately. Engineered for durability and reliability, it’s a trusted upgrade for maximizing your Cummins engine’s potential.
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 13 × 10 × 4 in |
| Brand |
Fitment
- 2007.5 Dodge Ram 2500/3500 6.7L 24V Cummins
- 2008 Dodge Ram 2500/3500 6.7L 24V Cummins
- 2009 Dodge Ram 2500/3500 6.7L 24V Cummins
Features
Application Notes
For proper clearance and fitment, modification to the factory air intake horn may be required based on your specific configuration. Aftermarket intake horns generally provide greater clearance and may not require modifications to allow for proper fitment of this kit.
Belt Routing

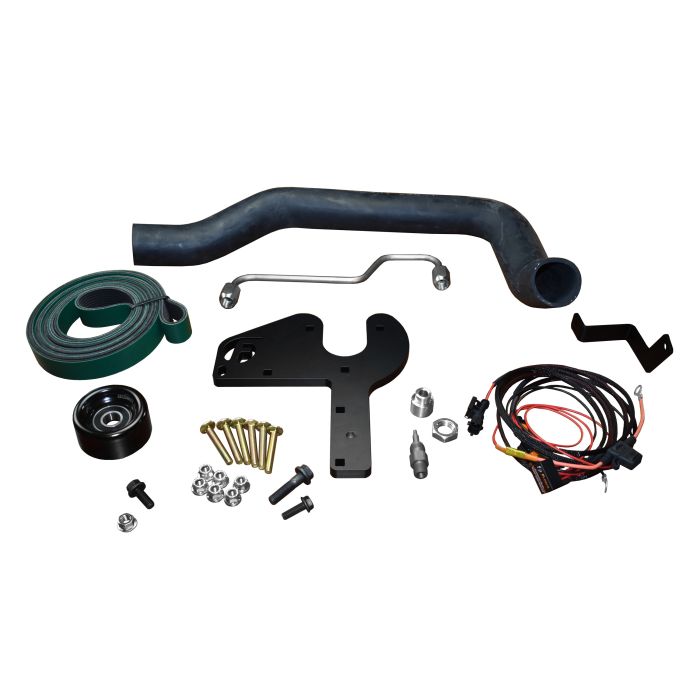

Includes
Cummins Common Rail Dual CP3 Bracket
Cummins Heavy Duty Dual Pump Belt
Fan Shroud Bracket
Upper Radiator Hose
Dual Pump Pulley – Idler
Cummins Dual Pump Idler Pulley Spacer
Cummins Dual Pump Controller
High Pressure Dual Pump Line (CP3 to CP3)
High Pressure CP3 Fitting and Non-Return Valve
(6) M8x1.25 Flange Nuts
(6) M8x1.25×50 Carriage Bolts
M10x1.5x25mm Flange Head Bolt
M8×1.25 Flange Head Cap Screw
M18x1.5 CP3 Nut
