Fleece Performance Cheetah Turbocharger for 2017-2023 Duramax L5P

Drop-In Cheetah Turbo for the L5P Duramax

The Fleece Performance Cheetah Turbocharger is a stock-appearing, drop-in replacement turbo for 2017-2023 Duramax L5P applications. Fleece designed the Cheetah to deliver more power while maintaining OEM factory turbocharger functions, including the exhaust brake.

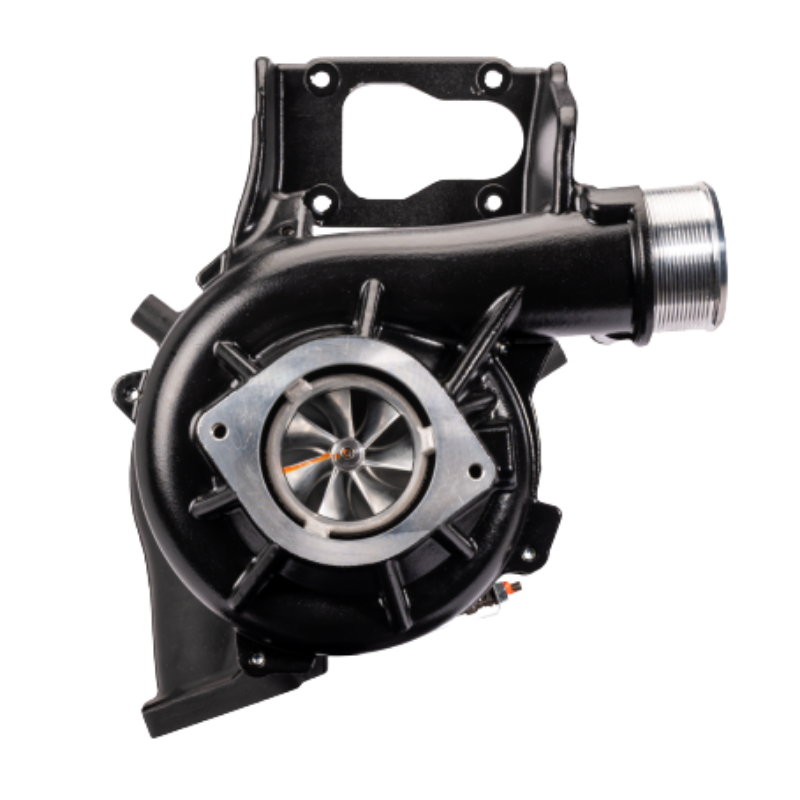

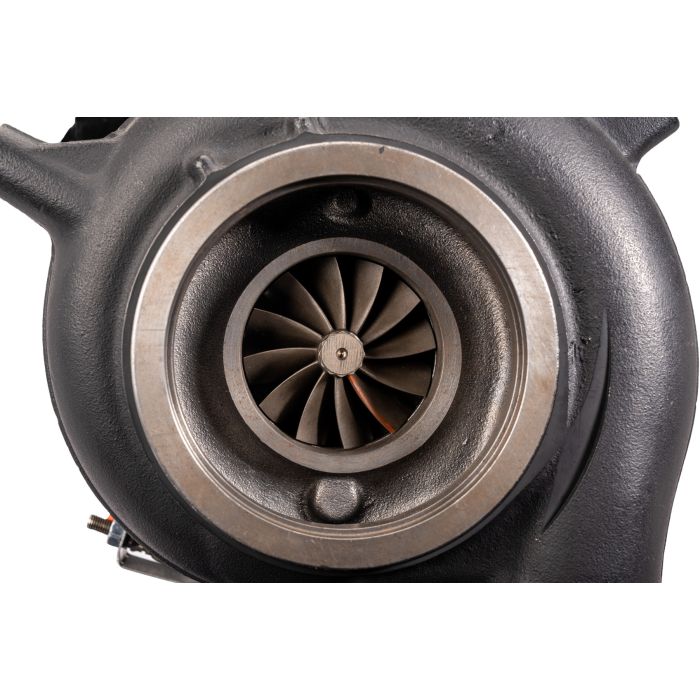

At the center of the Cheetah is Fleece Performance’s exclusive 63mm compressor wheel. Additionally, the turbo uses Inconel turbine wheel technology. Together, these components provide smooth throttle response, strong top-end power, and the classic Cheetah turbo sound.

The Cheetah supports up to 650 RWHP. Additionally, it is sold brand new, so there is no core charge and no old turbocharger to return.

63mm Cheetah Turbo Performance

Fleece Performance designed this Cheetah for drivers who want increased turbo performance without moving to a completely different turbo setup. The stock-appearing design keeps the installation straightforward while providing increased power capability.

Additionally, the turbo maintains factory turbocharger functions, including the exhaust brake. This makes the Cheetah a performance upgrade that retains important OEM functions.

Key Features

• Fits 2017-2023 Duramax L5P applications
• Stock-appearing design
• Drop-in ready
• Exclusive 63mm compressor wheel
• Inconel turbine wheel technology
• Supports up to 650 RWHP
• Smooth throttle response
• Strong top-end power
• Maintains OEM factory turbocharger functions
• Retains exhaust brake operation
• Brand new turbocharger
• No core charge
• No core return required
• 1-year limited warranty
• EO D-834-19
• Sold without an actuator

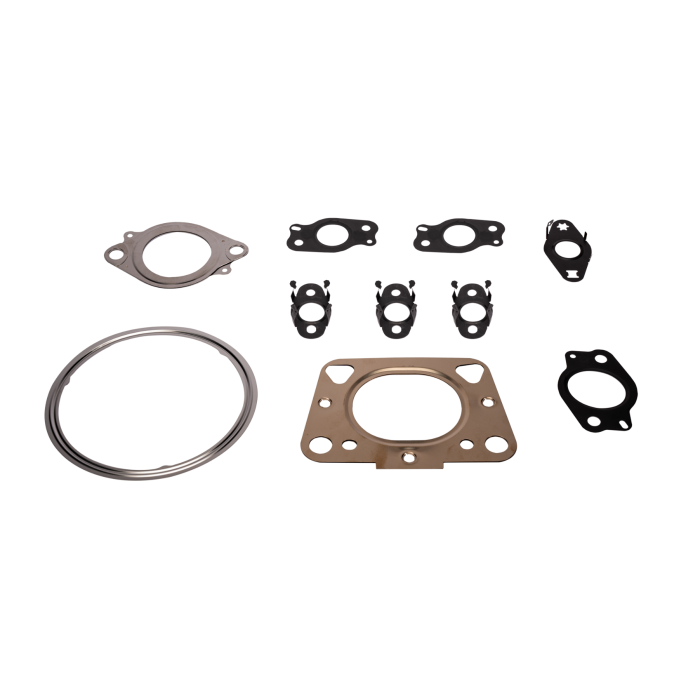

Gaskets Included with the Cheetah

Fleece includes several required gaskets with the turbocharger. Therefore, the package includes the following items:

• One EGR tube gasket to intake bridge
• One EGR coolant pipe gasket
• One PCV to compressor cover gasket
• Three gaskets for coolant feed, coolant return, and oil feed
• One turbine housing to catalyst gasket
• Two oil drain gaskets
• One pedestal gasket

Original Turbo Actuator Required

The Cheetah Turbocharger is sold without an actuator. Therefore, installation requires the vehicle’s original actuator or an applicable replacement actuator.

For 2017-2019 L5P applications, listed GM actuator part numbers include 12723306, 12683993, and 12683982.

For 2020-2023 L5P applications, listed GM actuator part numbers include 12723081 and 12707578.

Additionally, this Cheetah replaces OEM turbocharger part number 12723305 for 2017-2019 applications and OEM part number 12723083 for 2020-2023 applications.

Stock Intake Horn and Airbox Recommended

For optimal performance in most applications, Fleece recommends using the stock intake horn and stock airbox with the Cheetah. According to Fleece, aftermarket intake horns and airboxes can affect MAF sensor readings and negatively impact overall turbocharger performance.

Therefore, Fleece recommends the factory intake horn and airbox for peak Cheetah performance on a stock truck application.

Aftermarket Parts and Compressor Surge

Other modifications can also affect MAF sensor readings or lower overall engine RPM. These changes can include aftermarket intakes, air filters, intake horns, throttle sensitivity boosters, and larger diameter tires.

Under certain loads and very low engine RPM, trucks using some of these parts may experience compressor surge. Additionally, Fleece notes that this is more likely on models equipped with the 10-speed transmission.

If this occurs, the transmission should be downshifted to avoid operating the engine at low RPM and lugging the engine.

Performance Module Compatibility

When using the stock airbox and stock intake horn, Fleece states that a quality performance module can complement the overall drivability of the Cheetah.

Examples provided by Fleece include the Edge HT2 and Banks Derringer. Therefore, owners considering a performance module should also pay attention to the recommended intake configuration and overall MAF sensor operation.

1-Year Limited Warranty and No Core Charge

Fleece Performance backs the Cheetah Turbocharger with a 1-year limited warranty. Additionally, the turbocharger is sold brand new.

That means customers do not have to pay a core charge or return their original turbocharger. Combined with its drop-in design, 63mm compressor wheel, Inconel turbine wheel, and support for up to 650 RWHP, the Cheetah provides a complete performance turbo option for the 2017-2023 Duramax L5P.
