Bilstein Front Leveling Kit (F4-SE5-C765-H0) for 2005-2016 Powerstroke 6.0L / 6.4L / 6.7L
$635.60
The Bilstein B8 5112 suspension kit is a high-performance front leveling kit designed to increase ground clearance, support larger tires, and enhance wheel travel. It includes two B8 5100 shock absorbers and two matched coil springs, and installs easily into factory locations without modifications. The kit delivers a smooth, stable ride on and off-road.
Description

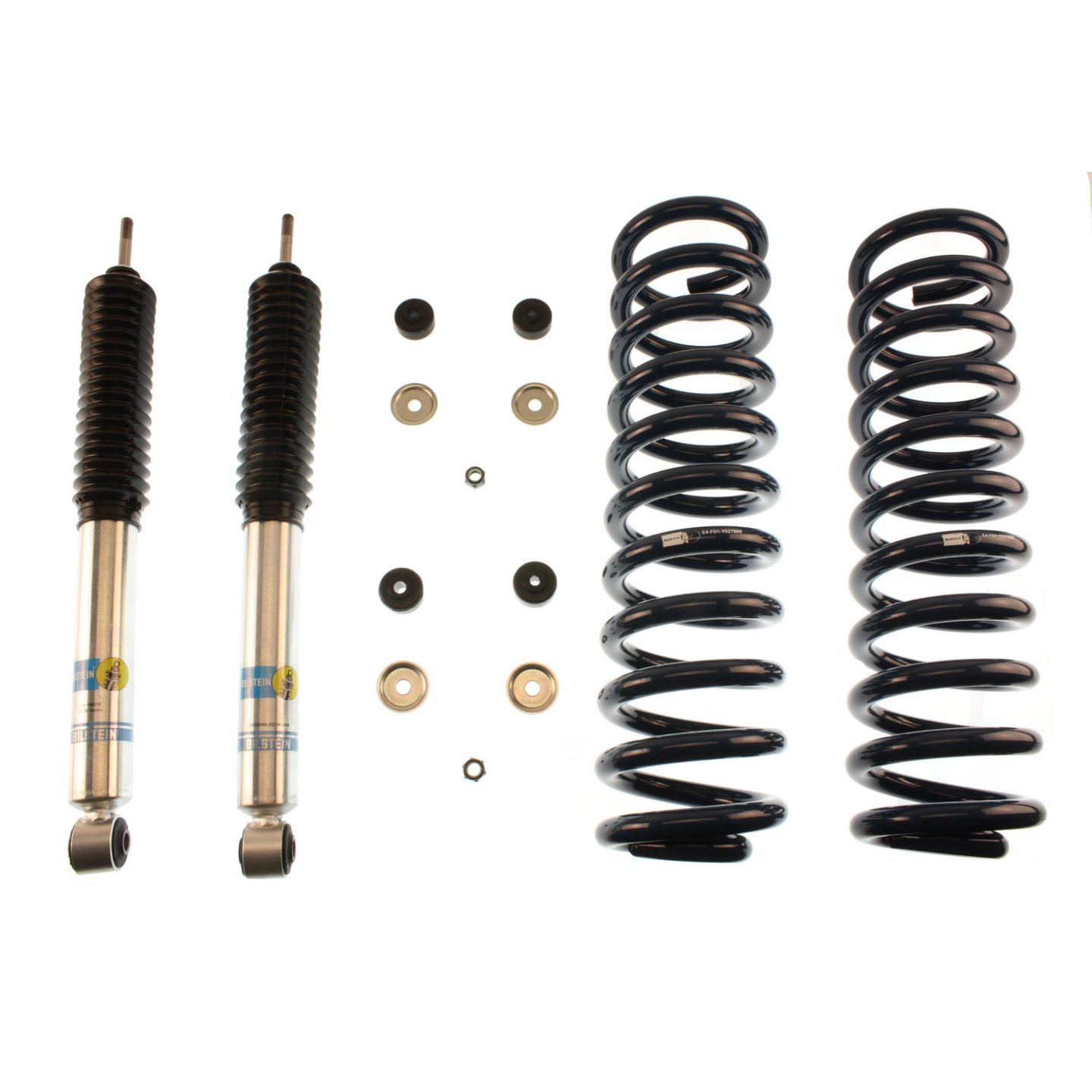

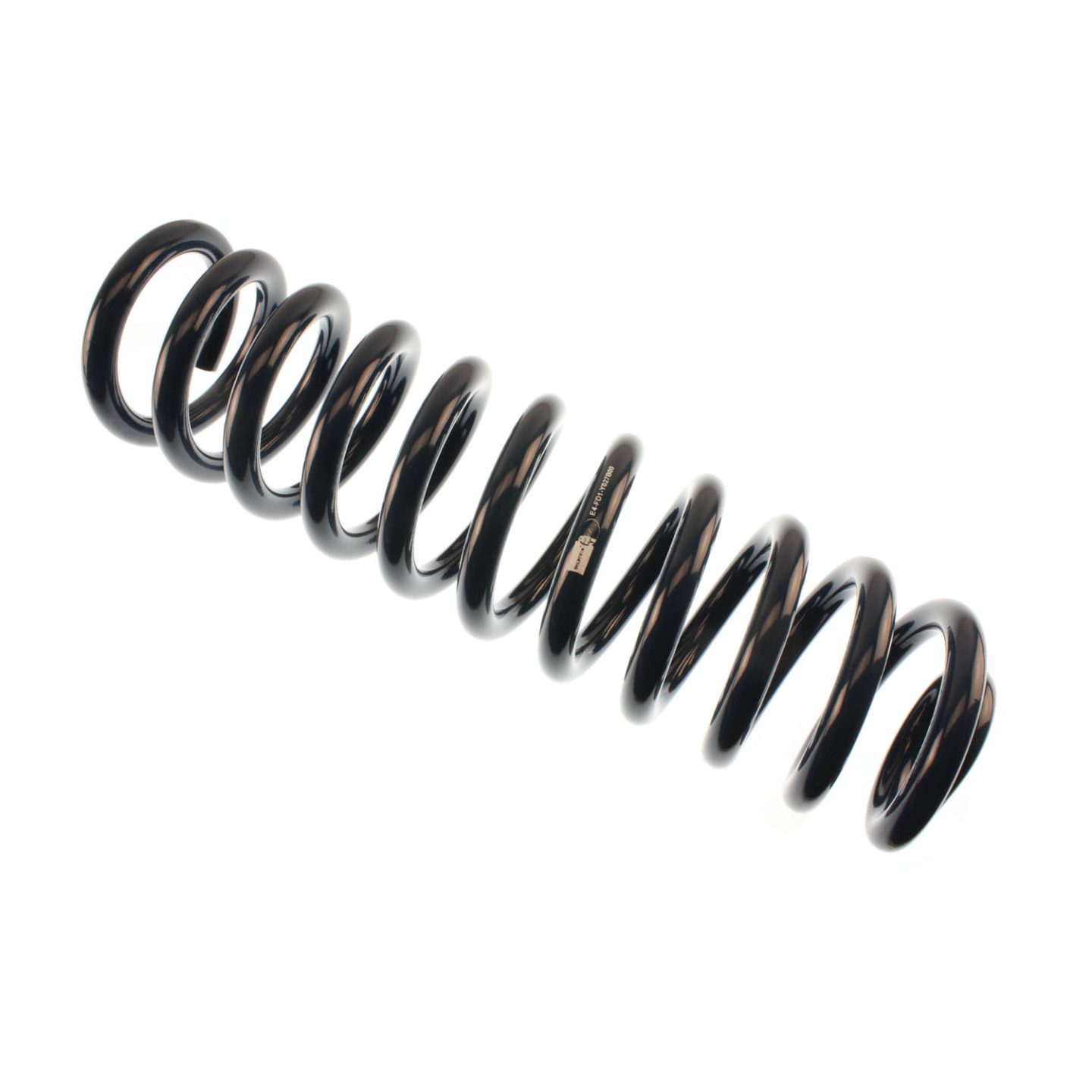

Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of (2) B8 5100 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.
Additional information
| Weight | 65.8 lbs |
|---|---|
| Dimensions | 30 × 17 × 6 in |
| Brand |
Fitment
2005-2016 Powerstroke 6.0L / 6.4L / 6.7L
Features

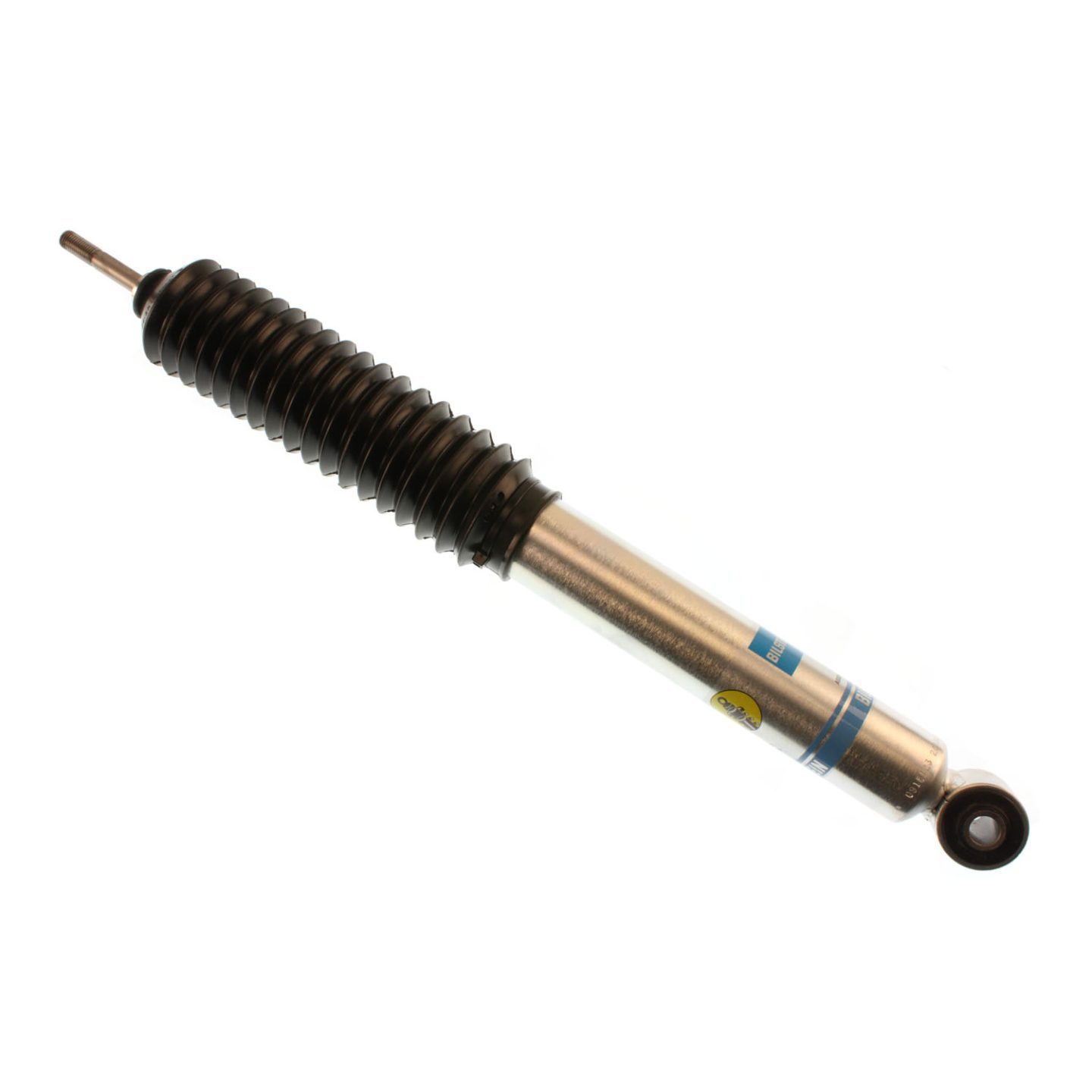

Bilstein 5100 shocks are specifically engineered for offroad and lifted trucks and feature:
- 14mm Hardened Chromed piston rod
- One piece alloy rod guide & seal system
- 46mm piston with self-adjusting digressive valving
- One piece extruded metal seamless monotube shock body
- Patented nitrogen chamber and floating dividing piston
- 360psi gas pressure
The Bilstein 5100 is an offroad ready high pressure monotube shock designed to take the abuses of offroad driving while still offering comfort and safety on the road. Using the high pressure monotube technology and durable extruded metal construction perfected on the Bilstein Heavy Duty, the 5100 Series brings the reliability and performance offroaders have come to love in Bilstein shocks to lifted trucks.
This Bilstein 5100 truck shock is designed for lifted vehicles using stock shock mounting points.
Levels vehicles by lifting front end 2.5-inches. Use with 24-186025 Bilstein rear shocks.
Finish – Dampers: Zinc Plated/Springs: Blue
Internal Design – Monotube
