Edge EZX (12713) for 2023-2025 Powerstroke 6.7L
$749.95
The Edge EZX 12713 is a plug-and-play performance module for 2023–2025 Ford 6.7L Powerstroke trucks with adjustable power levels.
Edge EZX 12713

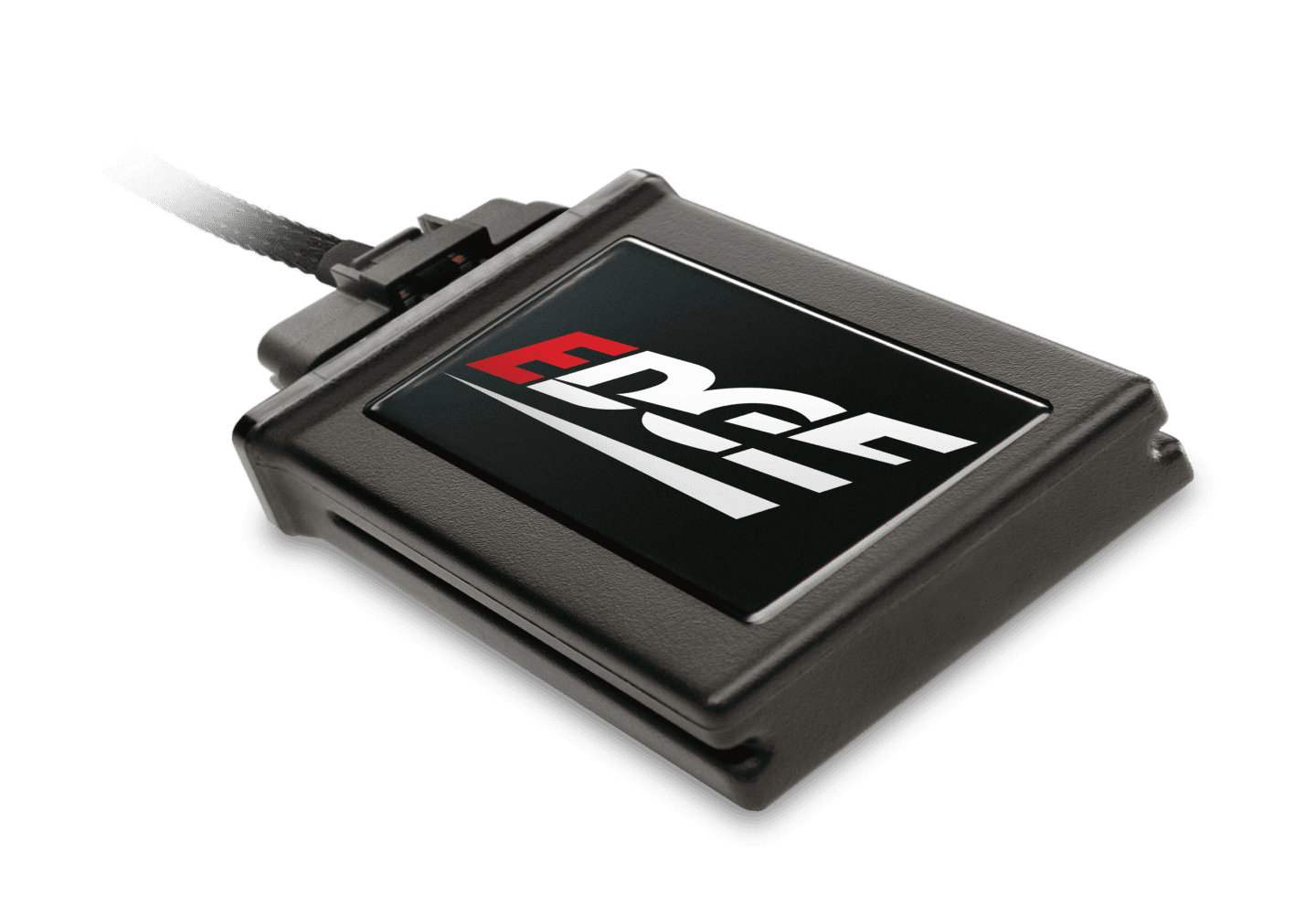

The Edge EZX 12713 is an inline performance module designed for 2023–2025 Ford Powerstroke trucks equipped with the 6.7L engine. This plug-and-play module improves throttle response, drivability, and overall power without permanent modifications to the factory ECM.
Installation takes only minutes because the module connects directly to the factory system. No cutting, splicing, or permanent wiring changes are required. Once installed, drivers can control power levels and other vehicle settings using the Edge smartphone app.
The module delivers stronger acceleration and improved towing performance while maintaining emissions compliance. Because the device leaves no trace when removed, many owners choose it as a warranty-friendly performance upgrade.
Adjustable Power Levels
The module provides multiple power levels that drivers can adjust on the fly through the Edge mobile app. These power levels allow drivers to choose the performance level that best fits their driving situation.
Five adjustable power levels available
Standard output up to +60 horsepower and +140 lb-ft torque
Improved throttle response and drivability
Adjustable throttle booster settings through the mobile app
Power levels selectable while driving
These settings allow drivers to optimize performance for towing, daily driving, or maximum power.

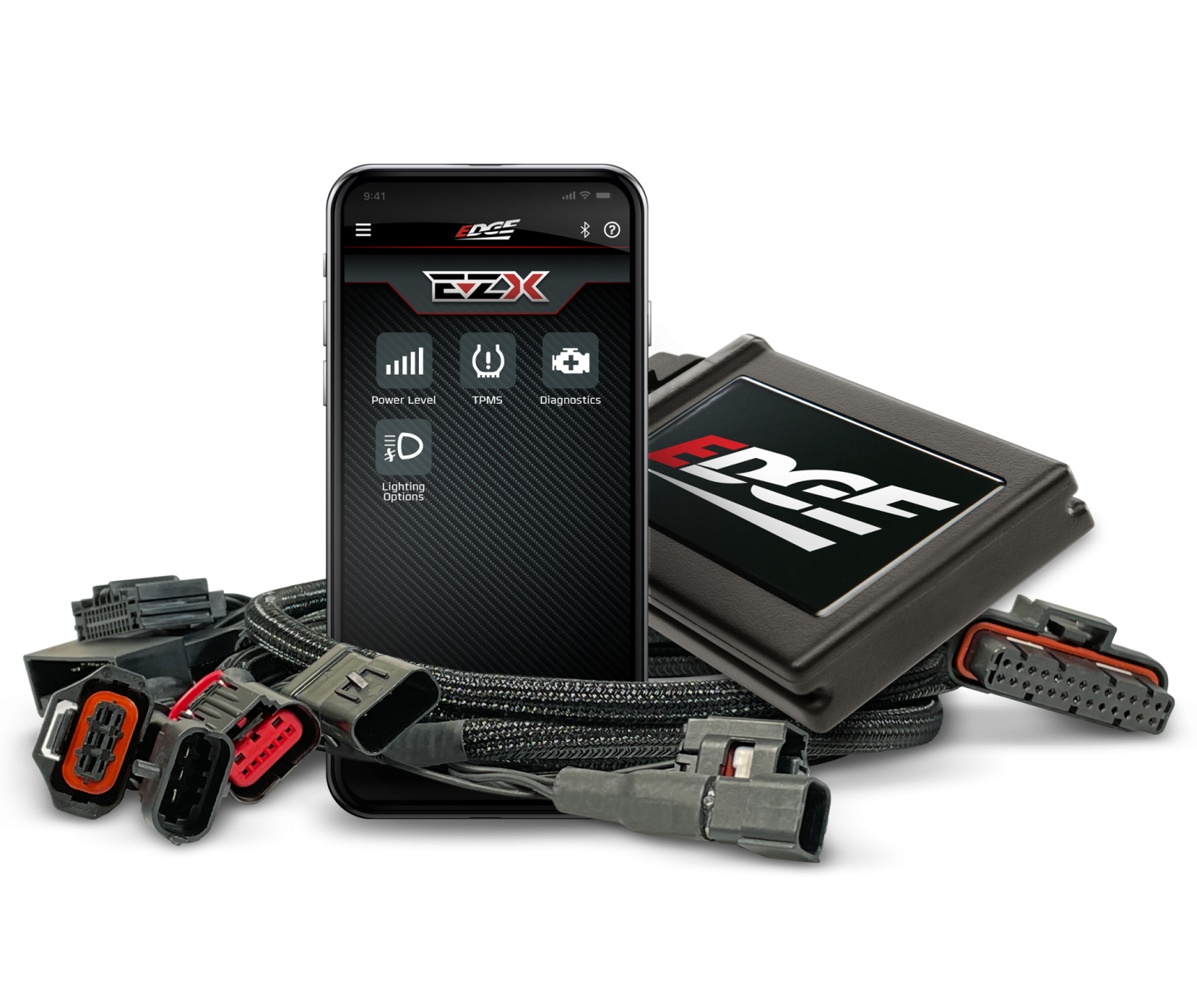

Smartphone App Controls
The Edge mobile app allows drivers to control several vehicle features directly from their smartphone. This provides quick access to important settings without additional switches or controllers.
Adjust throttle booster settings
Enable or disable fog beams with high beams
Adjust TPMS warning thresholds
Enable or disable TPMS sensors
Read and clear ECM and TCM diagnostic trouble codes
Drivers can also check emissions readiness monitors directly from the app.
Built-In Protection and Monitoring
The module includes built-in safety protections to help maintain engine reliability during operation.
Engine coolant protection limits power until the engine reaches operating temperature. The module also reduces power if coolant temperature exceeds safe limits.
Engine coolant protection system
Power limited until 120°F engine coolant temperature
Power reduced at 240°F coolant temperature
Helps maintain safe engine operation
Designed for 2023–2025 Powerstroke Trucks
The Edge EZX 12713 is designed for Ford trucks equipped with the 6.7L Powerstroke engine.
Compatible vehicles include:
Ford F250 Super Duty
Ford F350 Super Duty
Ford F450 pickup
This module supports both standard output and high output versions of the 6.7L Powerstroke engine.
Note: Does not support cab and chassis applications.
Check out more amazing performance parts for your 2023-2025 Powerstroke.
| Weight | 3.6 lbs |
|---|---|
| Dimensions | 9.5 × 6.3 × 4 in |
Fitment
2023-2025 Powerstroke 6.7L
Features
- 5 Power Levels Adjustable on-the-fly (+60hp/140tq)
- User adjustable throttle booster settings in each power level via app
- Tire Pressure Monitoring Sensors Enable/Disable, Warning On/Off, and Pressure Threshold adjust via app
- Engine Coolant Protection (Module adds no power until 120-degree ECT, backs down power at 240-degrees ECT)
- Fog Beams with High Beams Enable/Disable via app
- Read and clear ECM/TCM diagnostic codes via app
- Check Emissions Readiness monitors via app

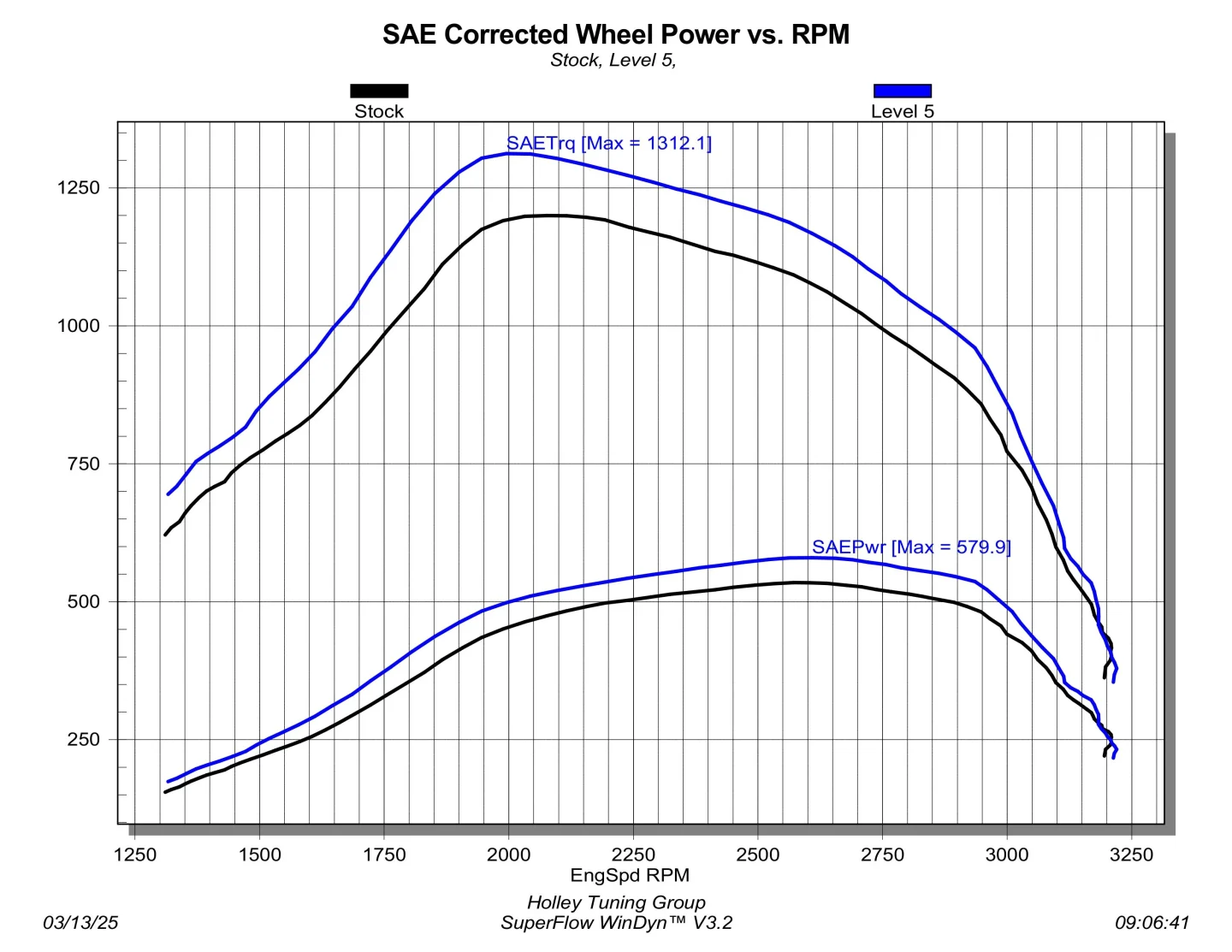

- Standard Output Level 1 – 10hp/37tq, Level 2 – 20hp/48tq, Level 3 – 30hp/62tq, Level 4 – 40hp/75tq, Level 5 – 60hp/140tq
- High Output Level 1 – 5hp/19tq, Level 2 – 13hp/30tq, Level 3 – 20hp/48tq, Level 4 – 28hp/67tq, Level 5 – 45hp/112tq
Warning
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
