Evolution CTS3 with Locksmith (85400-260) For 2020-2023 Duramax L5P
$1,210.95
The Edge Evolution CTS3 tuner delivers advanced tuning and monitoring for 2017–2023 L5P Duramax trucks. The kit includes the Edge Locksmith module that unlocks the ECM and TCM through the OBDII port. Drivers can install emissions-friendly calibrations designed for towing, daily driving, and performance use. The large 5-inch touchscreen monitor displays real-time engine data and customizable gauges. Built-in diagnostics, transmission tuning, and data logging provide a complete performance upgrade.
Edge Evolution CTS3 L5P Duramax Tuner and Monitor
The Edge Evolution CTS3 provides advanced tuning and monitoring for 2017–2023 Chevy Silverado and GMC Sierra trucks equipped with the 6.6L L5P Duramax. This device combines flash tuning, real-time monitoring, and diagnostic tools in one system. As a result, Duramax owners gain improved horsepower, better towing performance, and detailed engine data.

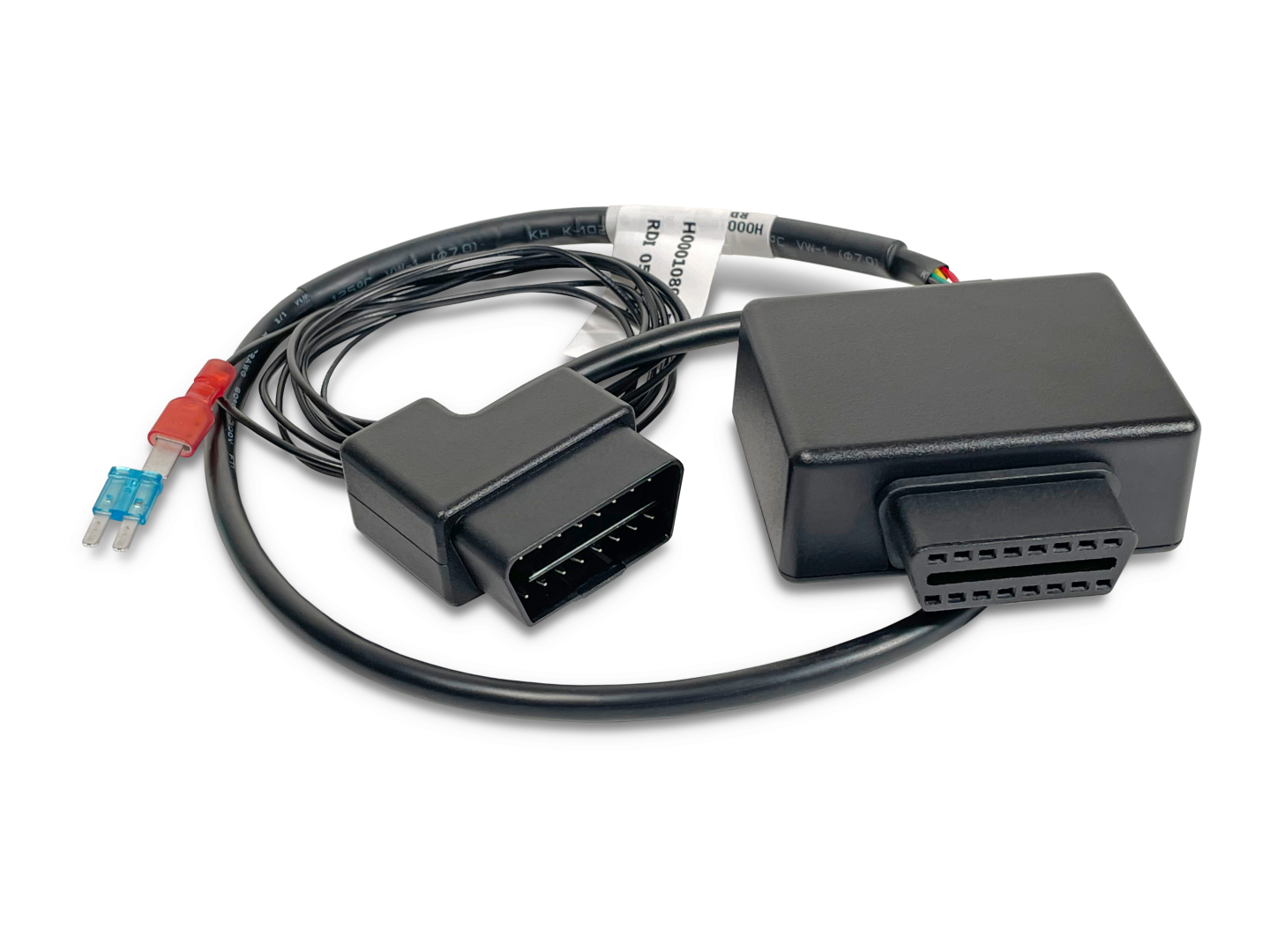

The kit includes the Edge Locksmith module, which unlocks the factory ECM and TCM through the OBDII port. Once unlocked, drivers can install emissions-friendly performance calibrations directly from the device. These tunes support daily driving, towing, fuel economy, and performance use. After flashing the calibration, drivers can disconnect the unlock tool and enjoy improved performance.
Performance Gains and Power Levels
This system delivers significant performance improvements for the L5P Duramax platform. Power gains can reach up to 125 horsepower and 275 lb-ft of torque at peak RPM depending on the selected tuning level. Drivers can choose from several calibrations designed for different driving conditions.
The available power levels include Economy, Tow, Performance, and Extreme modes. Each level adjusts fueling, throttle response, and power delivery. As a result, drivers can tailor performance to match their driving needs.
The device also includes a Throttle Boost feature. This adjustment allows drivers to change pedal sensitivity for quicker response. In addition, the system can improve quarter-mile performance with faster acceleration.
Advanced Monitoring and Display

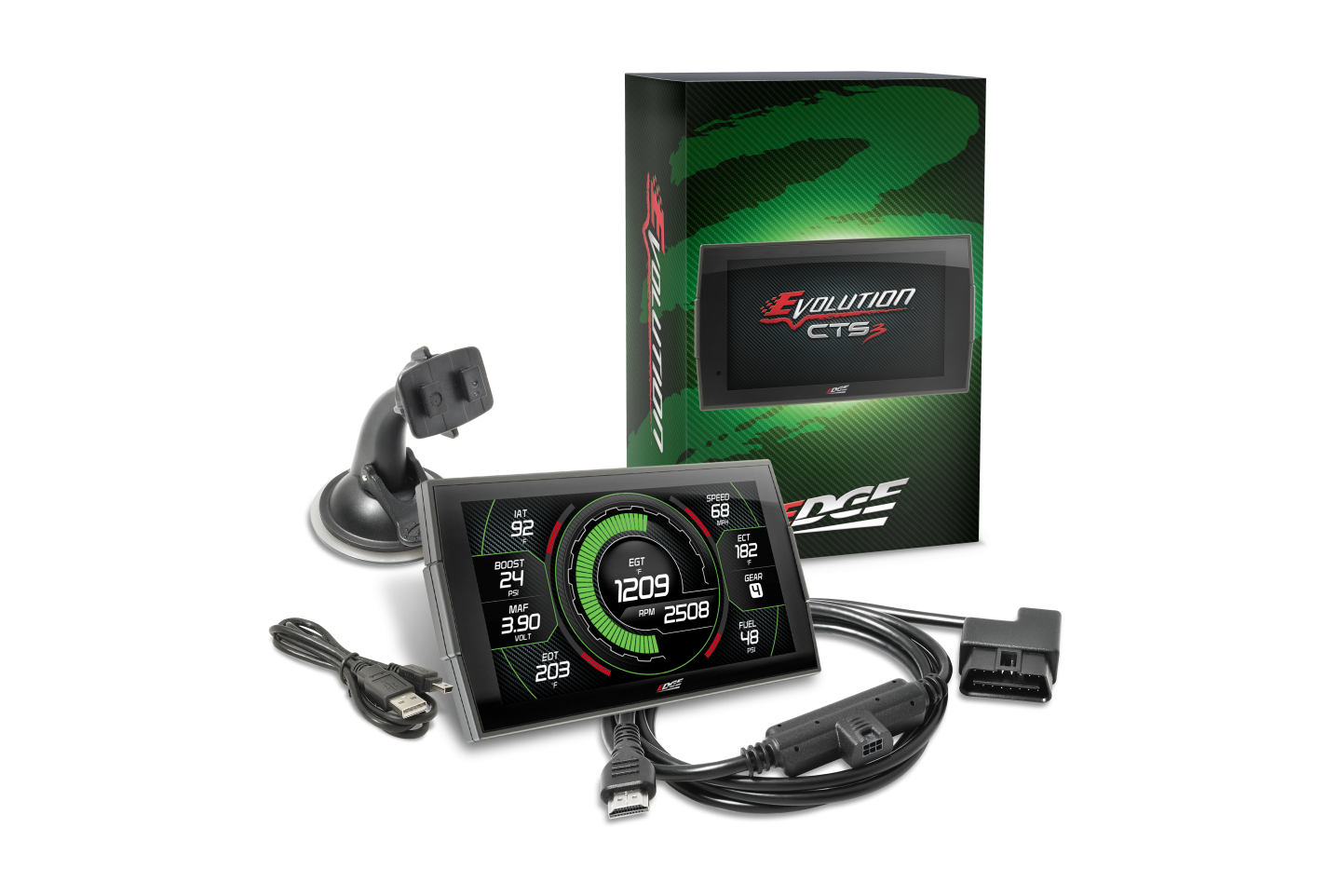

The CTS3 includes a large 5-inch high-resolution touchscreen display. This monitor provides real-time engine data and customizable gauge layouts. Drivers can easily monitor important parameters while driving.
The display can show soot levels, miles since last regeneration, exhaust gas temperatures, boost pressure, and fluid temperatures. As a result, drivers can monitor engine conditions and prevent potential problems.
The touchscreen interface also allows quick navigation between monitoring screens. Drivers can swipe between gauges designed for towing, performance, or daily driving.
Transmission Tuning and Adjustable Features
This system also includes advanced transmission tuning. Trucks equipped with the 10-speed transmission receive multiple calibration options that improve shift quality and towing performance.
Several adjustment features provide additional control over vehicle operation. Drivers can recalibrate tire sizes for 26–38 inch tires to maintain accurate speedometer readings. In addition, users can adjust speed limiters and rev limiters.
The system also includes a manual DPF regeneration command. Drivers can initiate a regeneration cycle when needed. Additional features include Allison transmission relearn and an idle-up adjustment from 600–1800 RPM.
Diagnostics and Data Logging
The device includes built-in diagnostic tools that help simplify vehicle maintenance. Drivers can read and clear diagnostic trouble codes directly from the monitor. Therefore, they can quickly identify issues without additional tools.
The system also supports data logging and performance monitoring. Drivers can record vehicle data during driving sessions or performance runs. Later, they can review the logs to evaluate engine performance and tuning results.
Installation and Compatibility
Installation remains quick and simple. The tuner connects directly to the OBDII port and mounts inside the cab. The touchscreen display provides a clean and modern digital gauge system.
The device can unlock and tune only one vehicle. Once the ECM unlock process occurs, the tuner becomes locked to that VIN. Although drivers can return the truck to the stock calibration, the unlock process cannot be reversed.
The calibrations remain emissions-friendly and designed for trucks with factory emissions equipment. However, the system does not support the removal of emissions equipment.
Key Features
In-vehicle ECM and TCM unlock through the OBDII port
Power gains up to 125 horsepower and 275 lb-ft of torque at peak RPM
Four selectable power levels including Economy, Tow, Performance, and Extreme
Monitor vehicle data including soot levels, regeneration status, EGT, boost, and fluid temperatures
Large 5-inch touchscreen display with customizable gauge layouts
10-speed transmission tuning with multiple calibration options
Supports direct OBDII flash tuning for compatible 6-speed applications
Throttle boost feature allows adjustable pedal sensitivity
Calibrate speedometer for tire sizes from 26 to 38 inches
Command manual DPF regeneration cycle
Allison transmission relearn capability
Adjust speed and rev limiters
Adjust idle-up feature from 600 to 1800 RPM
Read and clear diagnostic trouble codes directly from the device
Data logging and performance monitoring tools
Remembers last button settings for drive mode, tow/haul, exhaust brake, and grade braking
Emissions-friendly calibrations designed for DPF-equipped trucks
Does not support removal of emissions equipment
| Weight | 2 lbs |
|---|---|
| Dimensions | 13.25 × 7.25 × 7.25 in |
Fitment
2020-2023 Duramax L5P
Features
- In-vehicle ECM/TCM unlock
- Adds up to 125hp/275tq to the tires at Peak RPM’s
- Monitor displays important data like Soot, Miles Since Last Regen, EGT’s, Boost and Fluid Temperatures
- 10-speed transmission tuning included, with choice of four calibrations to fine tune your experience (Economy, Tow, Performance, Extreme)
- Throttle Boost feature allows user adjustable pedal sensitivity

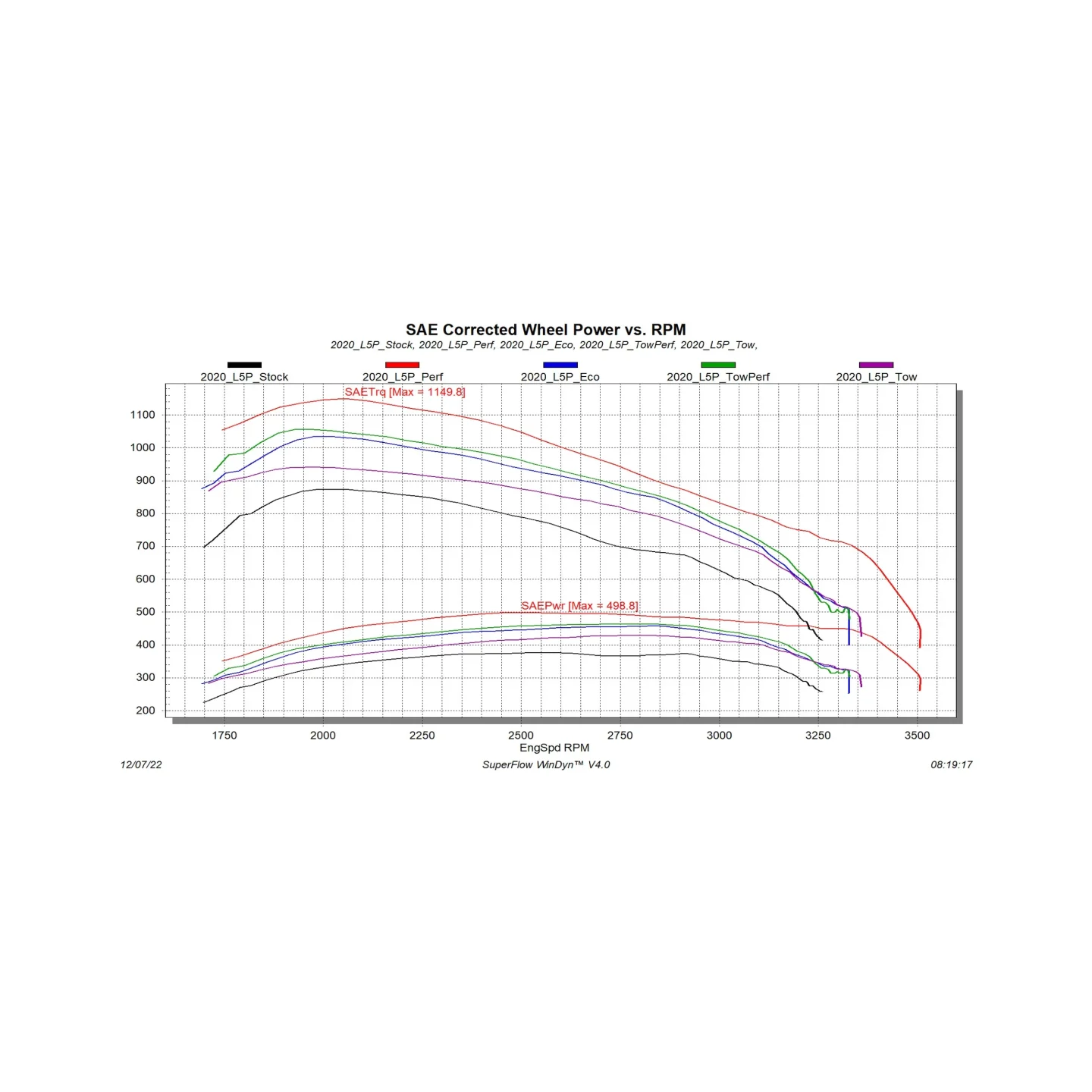

- Economy (50hp/100tq), Towing (75hp/160tq), Performance (90hp/180tq), Extreme (125hp/275tq) *Peak RPM Gains
- 1.3 seconds faster in the 1/4-mile, gained 8mph!
- Remember last button setting for drive mode, exhaust brake, tow/haul, and grade braking
- Calibrate speedometer for tire sizes 26-38″
- Command manual DPF regeneration cycle
- Allison Transmission Relearn
- Adjust speed and rev limiters
- Read and clear DTC’s
- Adjust Idle Up feature for 600-1800rpms
- Great for daily driving and towing performance
- Tuning has passed all in-house emissions testing with CARB EO submissions being processed
- Calibrations developed to offer clean, efficient DPF friendly performance
- Does NOT support the removal of emissions equipment
