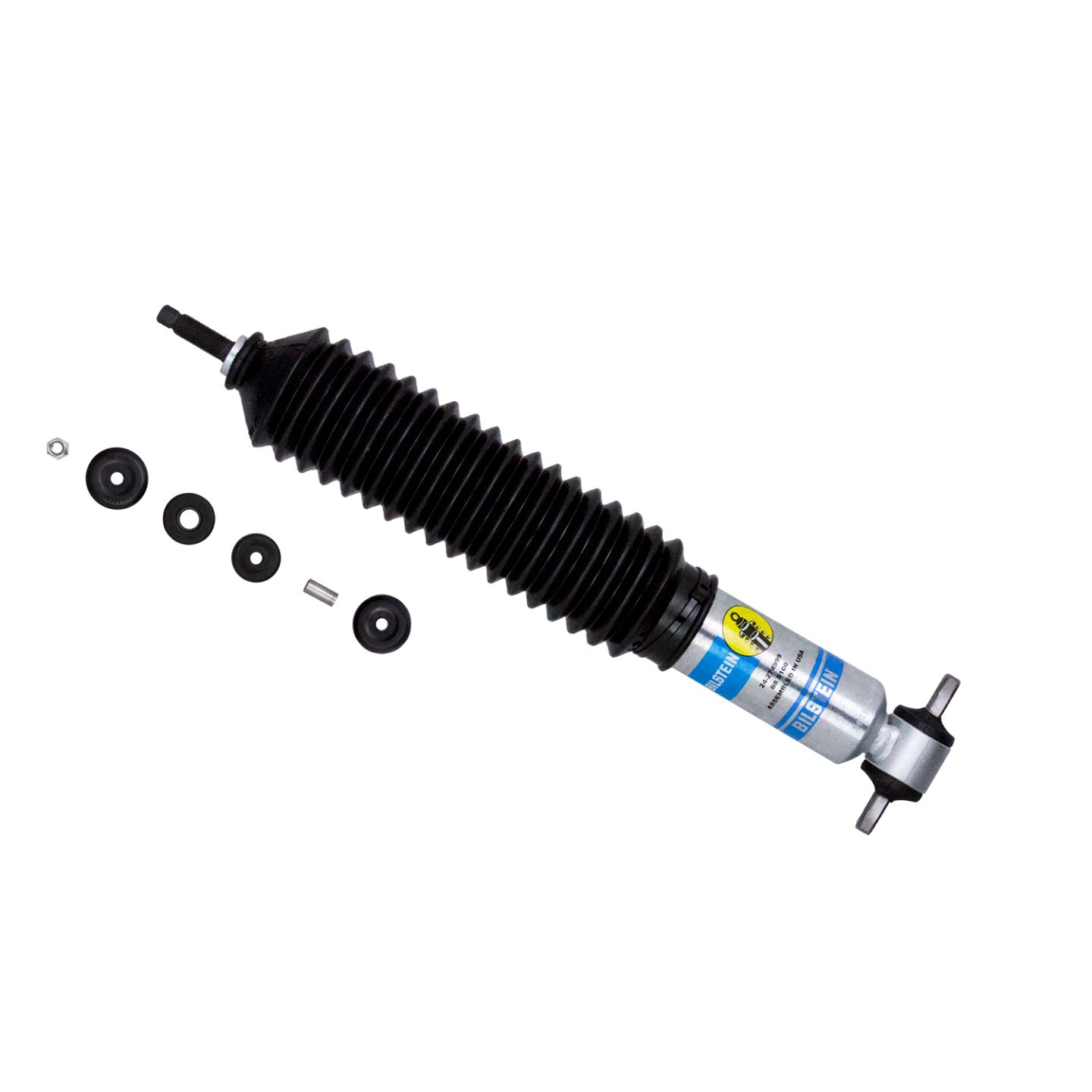

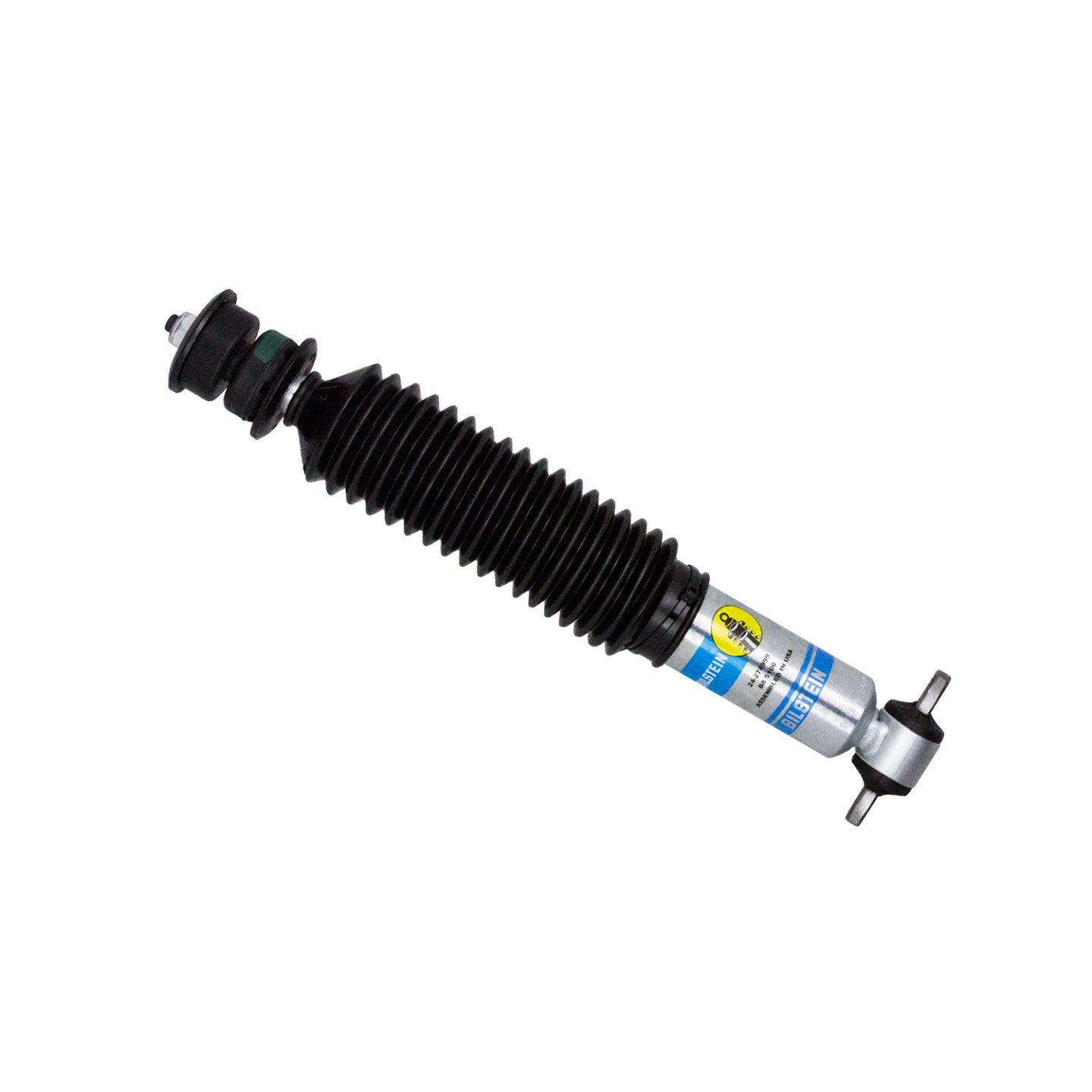

Bilstein Front B8 5100 Lifted Shock Absorber (24-274999) for 2009-2018 Cummins 6.7L
$156.60
The Bilstein B8 5100 shock absorbers are designed for lifted trucks and SUVs, offering a direct fit solution. Featuring a monotube design and a velocity-sensitive, digressive piston, they adapt to varying road conditions for consistent, fade-free performance. Each shock is application-specific tuned to enhance ride quality, handling, and comfort.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
| Weight | 7 lbs |
|---|---|
| Dimensions | 26 × 3 × 3 in |
Fitment
Ram 1500 2010-2009
Ram 1500 2018-2011
Ram 1500 Classic 2024-2019
Features
Monotube Design:
Much like its predecessor the Bilstein 4600 series, the 5100 series also features a monotube design, providing consistent damping and better heat dissipation.
Zinc Plated Finish:Â
The Bilstein 5100 series shocks have a unique and stylish zinc-plated finish for superior corrosion resistance. Making them durable in conditions favored by Bilstein Lifted, Off-Road and Drivers who tow.
High-Flow Piston:
The 5100’s larger diameter and high-flow piston design provides better control and responsiveness for your truck or SUV.
Velocity-Sensitive Valving:
This feature automatically adjusts to the road conditions, providing optimal damping whether you’re driving on the highway or off-road.
Tuned Specifically for Your Lifted Vehicle:
The Bilstein 5100 shock is specifically tuned for Trucks and SUV’s with lift kits, ensuring that the shocks complement the altered suspension geometry.
Benefits of the Bilstein 24-274999
Enhanced Off-Road Capability:
The 5100 series is designed for the ability to go off-road, offering better control and stability over rough roads and terrain, but still gives you a consistent smooth on road feel.
Improved Ride Comfort for Lifted, Off-Road or Towing:
These shocks provide a smooth and controlled ride, taking on bumps and vibrations effectively and gives you greater control on uneven roadways.
Durability and Longevity:
The zinc-plated finish and Bilstein’s high-quality materials ensure that the shocks are resistant to corrosion and wear, offering long-lasting performance.
The Best Handling and Stability:
The high-flow piston and velocity-sensitive valving improve the vehicle’s handling and stability enabling the driver to have greater control and stability.
Specifications
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN):Â 9.88
- Collapsed Length (MM):Â 251.0
- Extended Length (IN):Â 14.63
- Extended Length (MM):Â 371.5
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type:Â Eye Crossbar
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type:Â Stem
