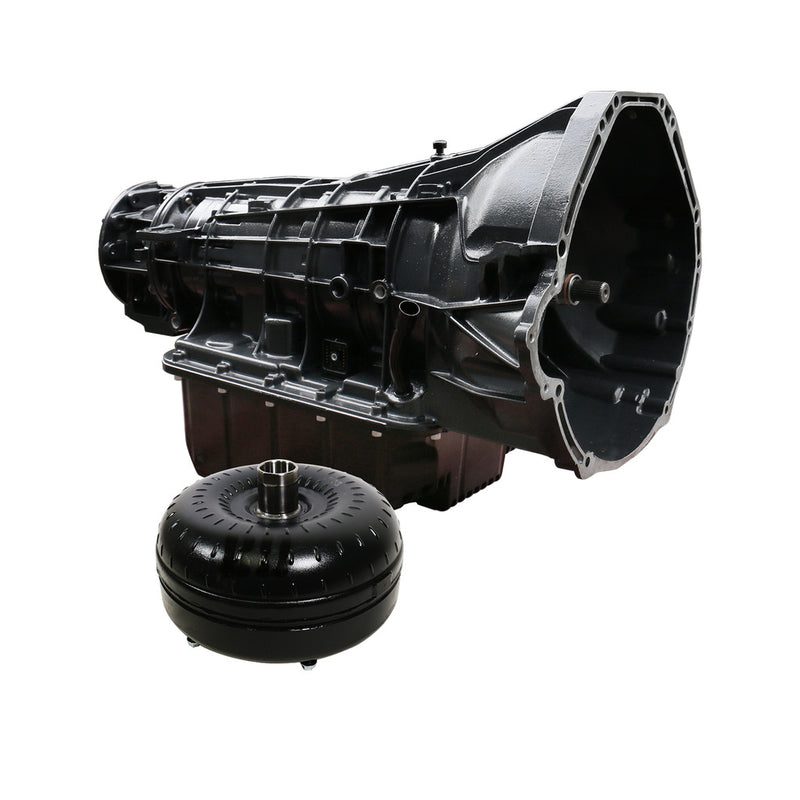

BD Diesel TowMaster 5R110 Transmission & Converter Package (1064464SM) for 2003-2004 Powerstroke 6.0L
$4,985.00
The BD Diesel TowMaster 5R110 Transmission & Converter Package (1064464SM) is a high-performance upgrade for 2003–2004 Ford Powerstroke 6.0L trucks, designed for towing and heavy-duty use. It features a fully remanufactured 5R110 transmission with durability enhancements like improved clutch packs, valve body upgrades, and a heavy-duty oil pan for better cooling. The package also includes a triple-disc torque converter for efficient power delivery and improved towing performance. Ideal for demanding drivers, it offers increased reliability, strength, and extended transmission life.
The BD Diesel TowMaster 5R110 Transmission & Converter Package (1064464SM) is a high-performance upgrade specifically engineered for 2003-2004 Ford Powerstroke 6.0L trucks. Designed to handle the increased demands of towing and heavy-duty applications, this package includes a fully remanufactured 5R110 automatic transmission and a precision-built torque converter. The transmission is enhanced with BD Diesel’s proven durability upgrades, including improved clutch packs, valve body modifications, and a heavy-duty oil pan for better cooling. The included torque converter is triple-disc and designed for maximum efficiency and torque multiplication, ensuring smoother power delivery and improved towing performance. Ideal for drivers who demand reliability and strength under load, the TowMaster package provides a complete solution for extending transmission life and enhancing vehicle performance.
| Weight | 290 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
Fitment
2003-2004 Powerstroke 6.0L
Features
TRANSMISSION
- Increase the durability of your drivetrain
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Upgraded larger late model sump filter installed for better filtration
- Replace plastic pressure plugs in valve body with aluminum
- Heavy duty snap ring and pressure regulator valve to prevent runaway pressure damaging case
- Reworked front pump
- Clutch Count: COAST CLUTCH 3
- Clutch Count: FORWARD 4
- Clutch Count: LOW REVERSE 6
- Clutch Count: INTERMEDIATE 5 (67% increase over stock)
- Clutch Count: DIRECT 6 (50% increase over stock)
- Clutch Count: OVERDRIVE 5 (67% increase over stock)
- Each transmission is dyno tested
TORQUE CONVERTER
- Enhanced Stall – Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
Installation
Warning
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
