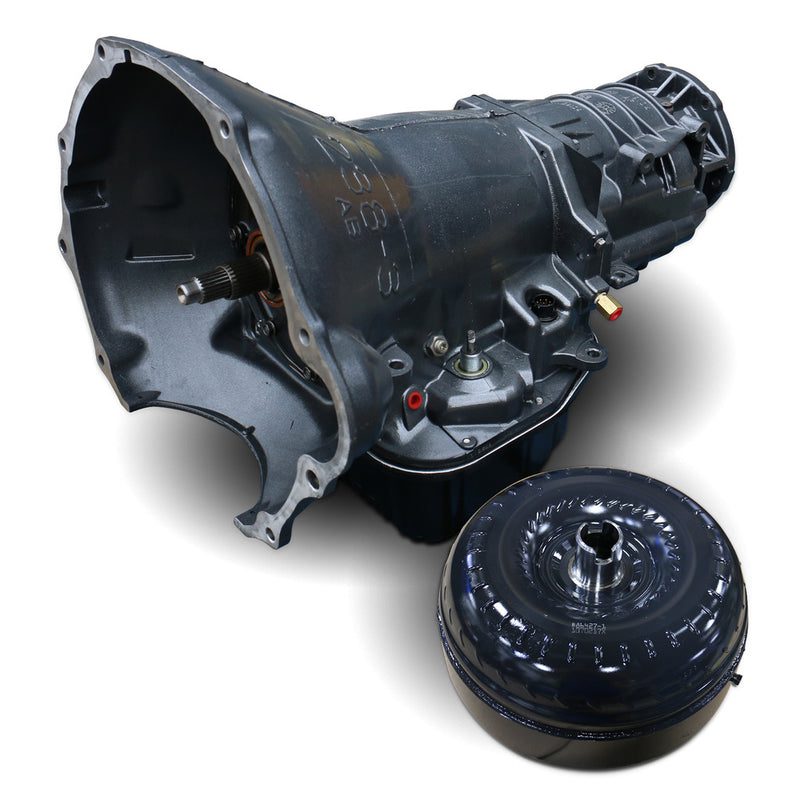

BD Diesel TowMaster 47RE Transmission & Converter Package (1064164SS) for 1996-1998 Cummins 5.9L
$5,196.00
The BD Diesel TowMaster 47RE Transmission & Converter Package (1064164SS) is a heavy-duty upgrade for 1996–1998 Dodge Ram trucks with the 5.9L Cummins engine. Designed for towing and high torque, it includes a reinforced 47RE transmission and a BD Triple Disc torque converter. Featuring billet components, improved clutch packs, and enhanced valve body tuning, it delivers greater durability, smoother shifts, and lower transmission temperatures. Ideal for towing and work applications, it boosts performance and reliability for Cummins-powered trucks.
The BD Diesel TowMaster 47RE Transmission & Converter Package (1064164SS) is a high-performance upgrade designed specifically for 1996-1998 Dodge Ram trucks equipped with the 5.9L Cummins engine. Engineered to handle the demands of heavy towing and high torque loads, this package includes a fortified 47RE transmission and a BD Triple Disc torque converter, both built to deliver superior durability and smoother power transfer. Featuring upgraded internals such as billet components, improved clutch packs, and enhanced valve body calibration, the TowMaster package ensures optimal performance under strenuous conditions. Ideal for towing enthusiasts and work truck operators, this transmission system offers increased reliability, reduced transmission temperatures, and improved shift quality, making it a trusted solution for maximizing the performance and longevity of your Cummins-powered vehicle.
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
Fitment
1996-1998 Cummins 5.9L
Features
TRANSMISSION
- Upgraded Valvebody
- Upgraded governor solenoid – Twice the burst pressure than stock
- Upgraded governor pressure transducer (47RE/48RE)
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Modified manual valve for lube in all positions
- Stock thrust bushings replaced with roller Torrington bearings
- Clutch Count: DIRECT 6
- Clutch Count: FORWARD 5
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- High temp/energy Raybestos band
- Upgraded 48RE sunshell
- Billet band lever
- Billet barrel strut
- Drilled intermediate shaft for increased lubrication
- BD rigid aluminum heavy duty transmission pan
- Pan adds 2qt extra oil capacity
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Increase the durability of your drivetrain
- BD auxiliary full flow filter kit for extra protection
- Cooler line case saver in every transmission
- Every transmission is tested on a dyno
- Not warranted for Race or Sled Pull use
TORQUE CONVERTER
- Enhanced Stall – Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
Installation
Warning
Note
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
