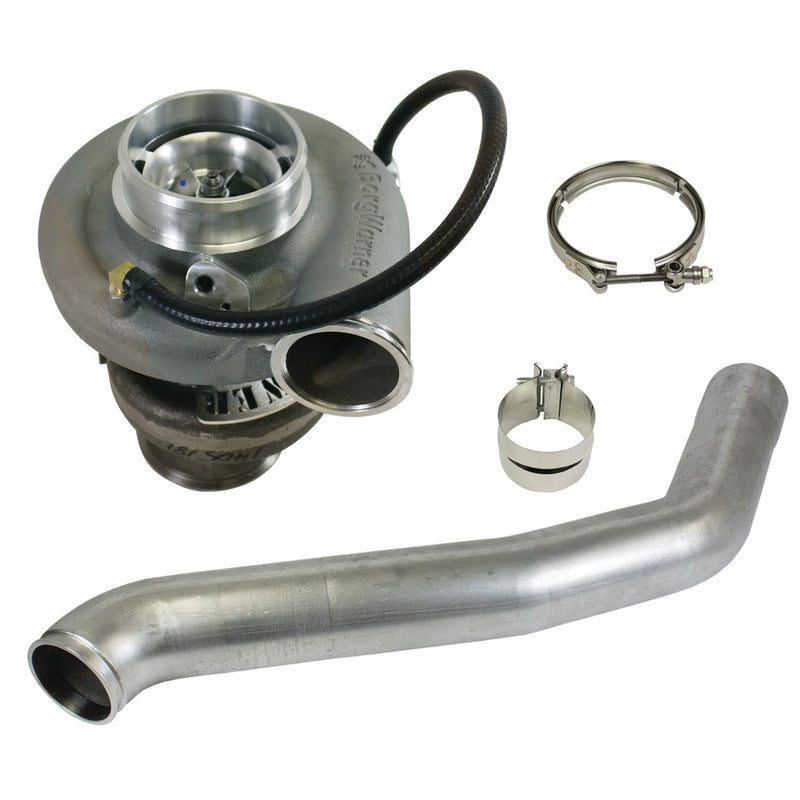

BD Diesel Super B Special SX-E S363 Turbo Kit (1045257) for 1994-2002 Cummins 5.9L
$2,524.00
The BD Diesel Super B Special SX-E S363 Turbo Kit (1045257) is a high-performance upgrade for 1994–2002 Dodge Ram trucks with the 5.9L Cummins engine. Featuring the durable and efficient SX-E S363 turbocharger, the kit enhances airflow, boosts performance, and enables quicker spool-up. Suitable for towing, daily driving, or performance use, it supports significantly higher horsepower than stock and includes all components for easy installation. Known for quality and reliability, it’s a top choice for Cummins owners seeking improved power and durability.
The BD Diesel Super B Special SX-E S363 Turbo Kit (1045257) is a high-performance upgrade designed specifically for 1994-2002 Dodge Ram trucks equipped with the 5.9L Cummins engine. Engineered to deliver improved airflow, quicker spool-up, and enhanced overall performance, this turbo kit features the SX-E S363 turbocharger, known for its durability and efficiency under high boost conditions. Ideal for towing, daily driving, or performance applications, the Super B Special kit includes all necessary components for a seamless installation and is capable of supporting horsepower ranges well above stock levels. With its robust design and BD Diesel’s reputation for quality, this turbo kit is a top choice for Cummins enthusiasts looking to elevate their truck’s power and reliability.
| Weight | 62 lbs |
|---|---|
| Dimensions | 64 × 14 × 13 in |
Fitment
1994-2002 Cummins 5.9L
Features
- BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
- The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
- BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
- BD’s HD Waste gate and bracket holds boost and prevents over speed damage
- Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
- Kit comes with downpipe, V-band clamp, band clamp
- Comp Wheel: 63mm 2.48in
- Turbine Wheel: 80mm 3.15in
- A/R Ratio: 0.80
- Flow: 79 Lb/min
- Approximate rated 550hp (depending on truck configuration)
Installation
Warning
This product CANNOT be shipped to California!
- Turbo mount exhaust brake cannot be installed with this kit – use remote mount exhaust brake
