BD Diesel TorqueMaster 68RFE Transmission & Converter Billet Shaft Package (1064264BM) for 2007.5-2018 Cummins 6.7L
$8,989.89
The BD Diesel TorqueMaster 68RFE Transmission & Converter Package 1064264BM upgrades strength and performance. It includes a billet input shaft and increased clutch capacity. This package improves durability, shifting, and cooling. It is built for 2007.5-2018 Cummins 6.7L trucks. The BD Diesel 1064264BM is ideal for high power applications.

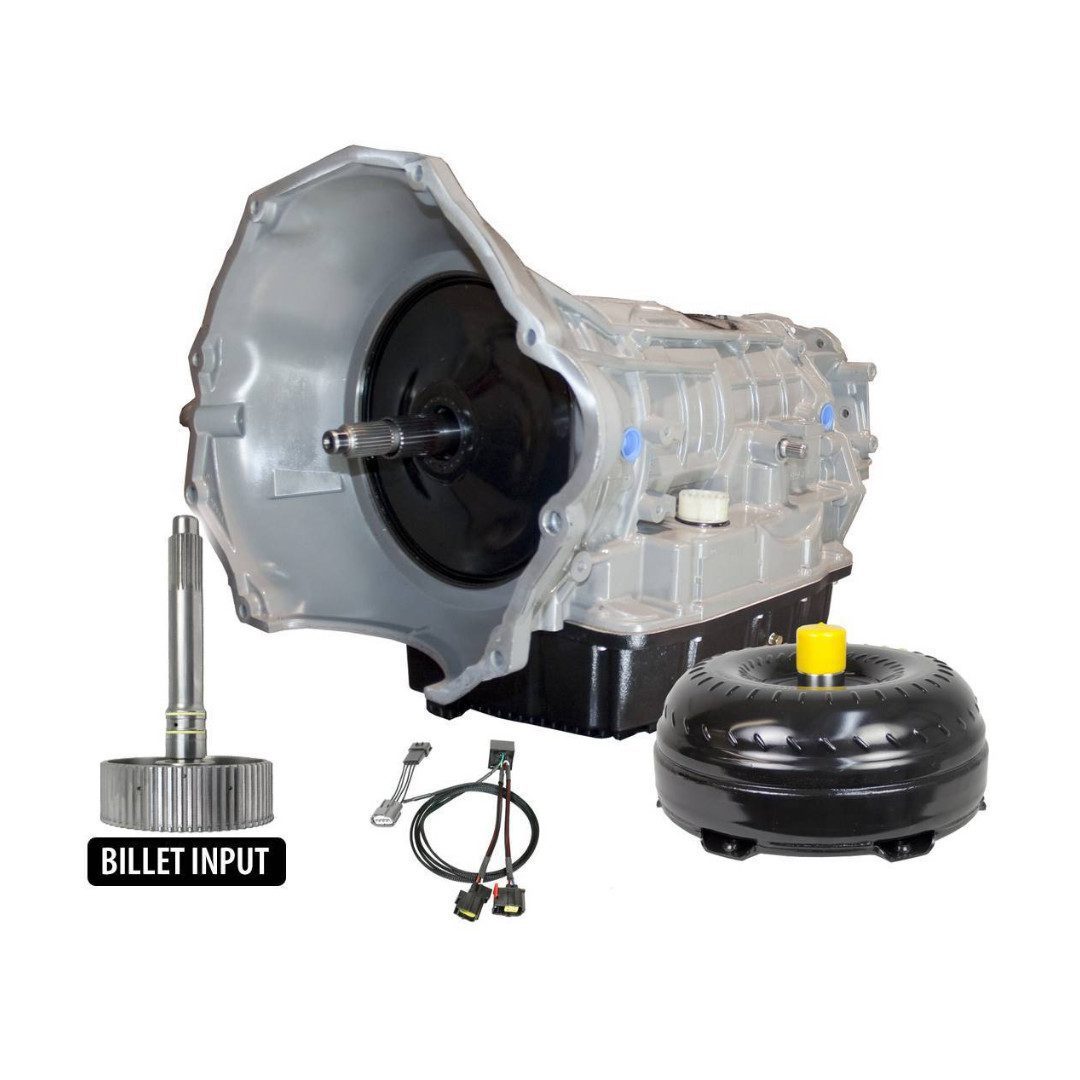

BD Diesel TorqueMaster 68RFE Transmission & Converter Package 1064264BM
BD Diesel 1064264BM Transmission Upgrade for 2007.5-2018 Cummins 6.7L
The BD Diesel TorqueMaster 68RFE Transmission & Converter Package 1064264BM is built to handle increased power and demanding conditions. This package upgrades both the transmission and torque converter for improved strength and performance. As a result, your truck can handle higher loads with more confidence.
This package includes a reinforced 68RFE transmission with upgraded internal components. In addition, it features a billet input shaft that absorbs shock from rapid throttle input. This helps protect the transmission while improving durability.
Improved Performance and Internal Strength
The transmission includes a hard anodized valve body and a new solenoid pack. As a result, it delivers consistent shifting and improved control. A custom separator plate increases line pressure while reducing internal cross leaks.
In addition, the heavy-duty cam and roller low reverse clutch improves reliability. A billet spring retainer and reinforced piston design allow for increased clutch capacity. Because of this, the transmission can handle higher torque levels more effectively.
Increased Clutch Capacity and Cooling Efficiency
The overdrive and 2C clutches increase by 33 percent. This provides a larger apply area and stronger holding power. At the same time, a deep sump oil pan adds fluid capacity and improves cooling.
The pressure control module raises line pressure up to 250 psi. It uses MAP sensor input to adjust pressure based on load. Therefore, the transmission can respond better under different driving conditions.
Torque Converter Designed for Strength
The torque converter is built for street and towing applications. It features enhanced stall characteristics and machined pistons. In addition, heavy-duty springs absorb engagement shock for smoother operation.
A one-piece forged cover helps reduce warping from heat. The trapezoid tooth design improves contact and reduces wear. Furthermore, thrust bearings replace plastic washers to improve durability.
Key Features
Hard anodized valve body with new solenoid pack
Custom separator plate increases line pressure
Heavy-duty low reverse clutch design
Billet spring retainer and reinforced piston
33 percent increase in overdrive and 2C clutches
Deep sump oil pan for added cooling and capacity
Pressure control module increases line pressure to 250 psi
Billet input shaft for improved strength
Enhanced stall torque converter for street and towing
Machined pistons and heavy-duty springs
One-piece forged cover reduces heat warping
Trapezoid tooth design reduces wear and chatter
Thrust bearings improve durability
Furnace brazed fins improve fluid efficiency
Reduced weight compared to competitors
Built for High Power and Reliability
The BD Diesel TorqueMaster 68RFE Transmission & Converter Package 1064264BM is engineered for strength and long-term performance. It supports higher horsepower while improving reliability and drivability. Therefore, it is a strong upgrade for trucks that demand more from their transmission.
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
Fitment
2007.5-2018 Cummins 6.7L
Features
TRANSMISSION
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase

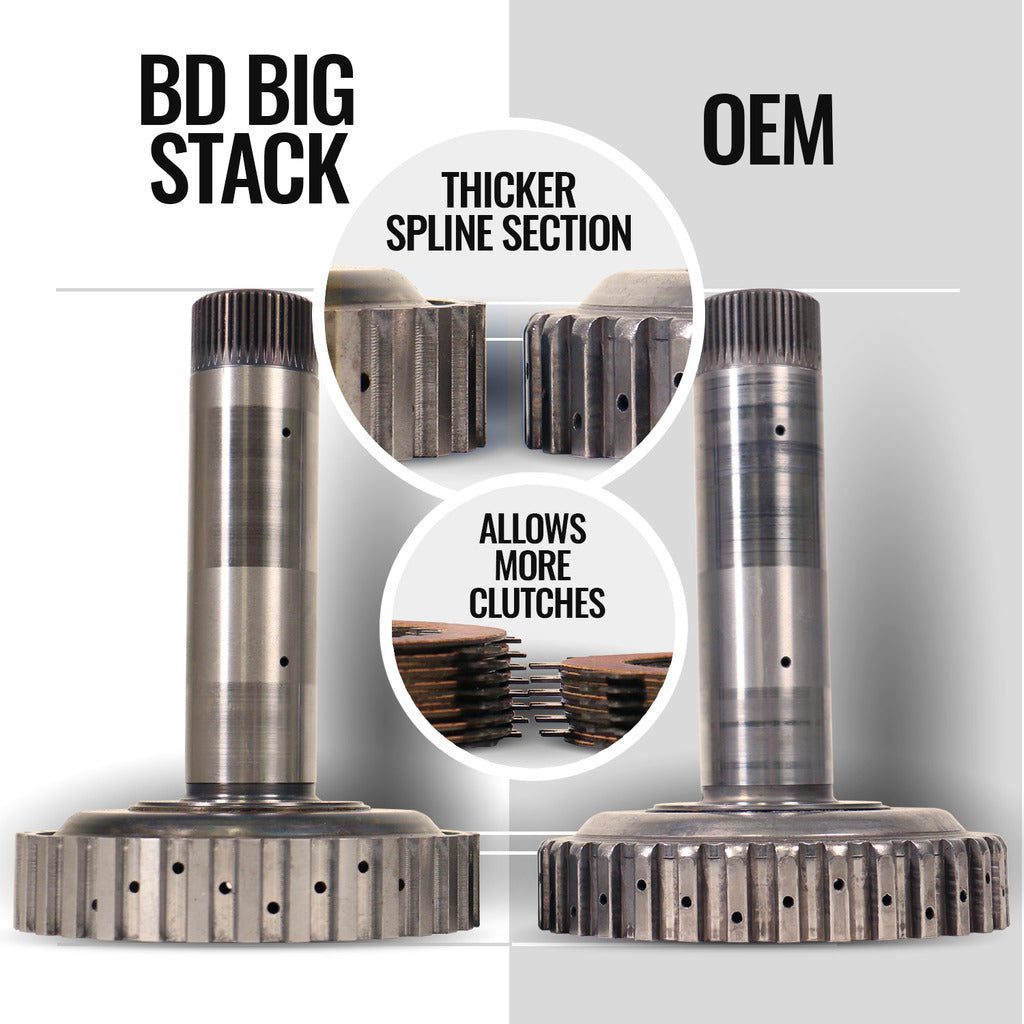

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- Performance Transmission but with the added touch of a Billet Input Shaft to take the “snap” from rapid throttle and high horsepower

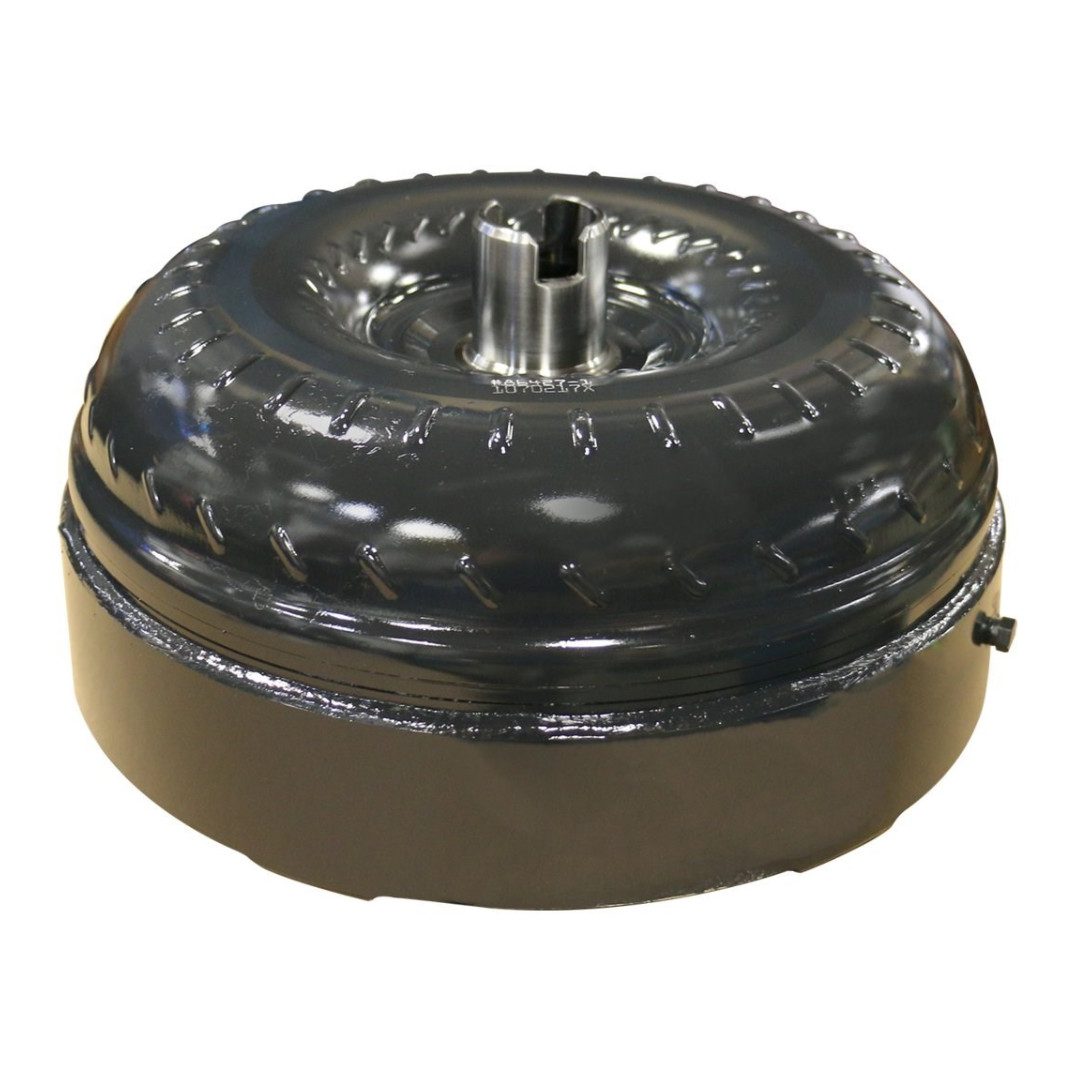

TORQUE CONVERTER
- Triple Disc
- Enhanced Stall – Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings – not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Warning
- No Race abuse covered
