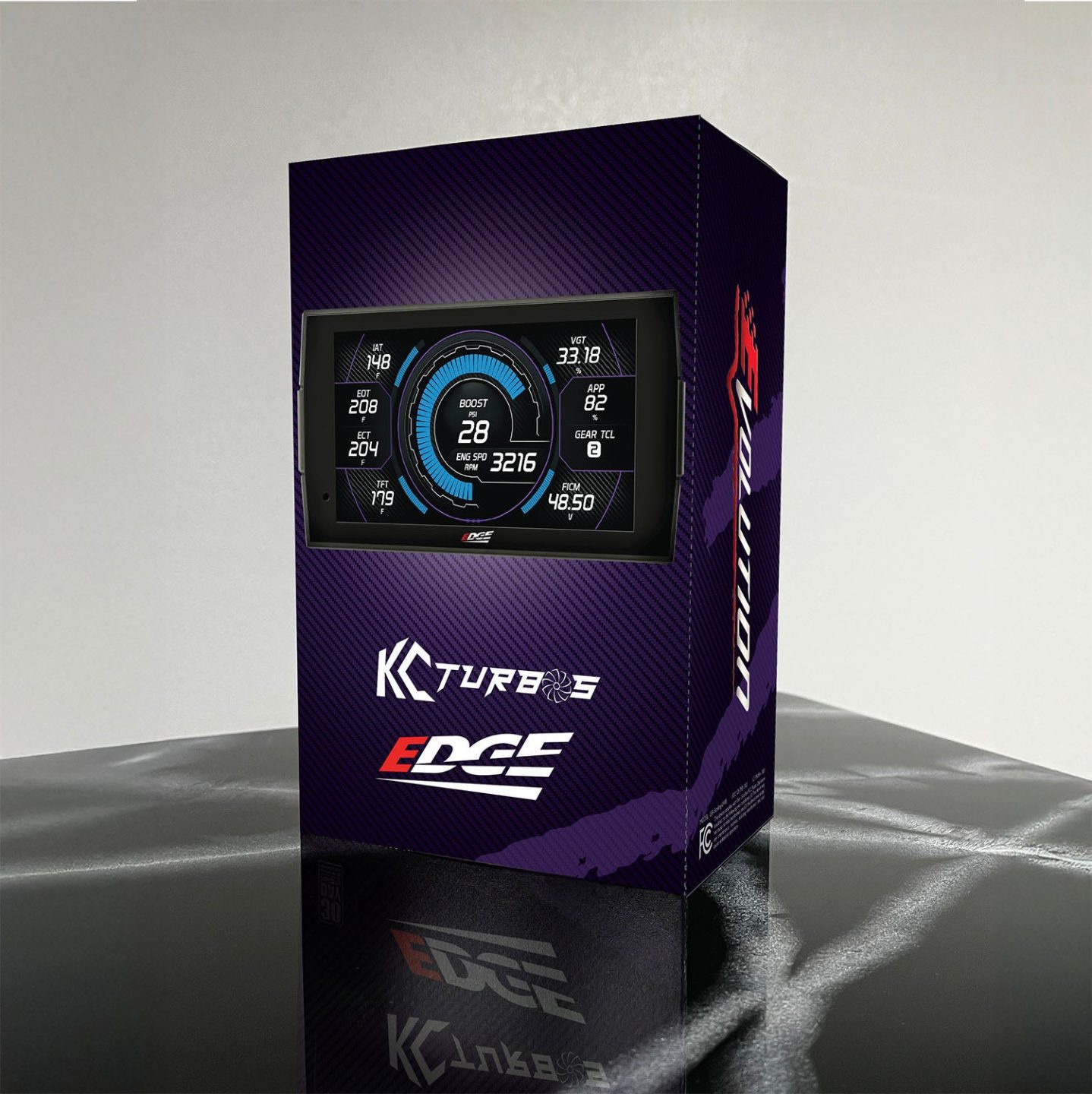

KC Turbo CTS3 Evolution Tuner (302664) for 2003-2007 Powerstroke 6.0L
$890.00
Unlock more power at your fingertips with Custom KC x Gearhead tunes available in six selectable power levels offering gains of up to 190HP with supporting mods. This powerful combo comes preloaded on the #1 digital gauge monitor for daily drivers and enthusiasts, featuring a custom KC Turbos gauge layout, advanced scan tool capabilities, and full support for both stock and modified VGT turbos. The 5” full-color touchscreen offers auto-dimming, swipe control, and a clean, intuitive interface.
KC Turbo CTS3 Evolution Tuner (302664) for 2003–2007 Powerstroke 6.0L
Custom KC x Gearhead Tuning Power at Your Fingertips
The KC Turbo CTS3 Evolution Tuner (302664) delivers reliable, dial-in power for 2003–2007 Powerstroke 6.0L trucks. By combining custom KC x Gearhead tuning with the proven CTS3 platform, this setup allows drivers to select from six power levels, offering gains of up to 190 horsepower when paired with proper supporting modifications. As a result, both daily drivers and performance-focused builds benefit from smoother power delivery and enhanced drivability. Additionally, the tuning fully supports both stock and modified VGT turbochargers, making it adaptable to a wide range of setups.
Advanced Monitoring and Custom Gauge Layout

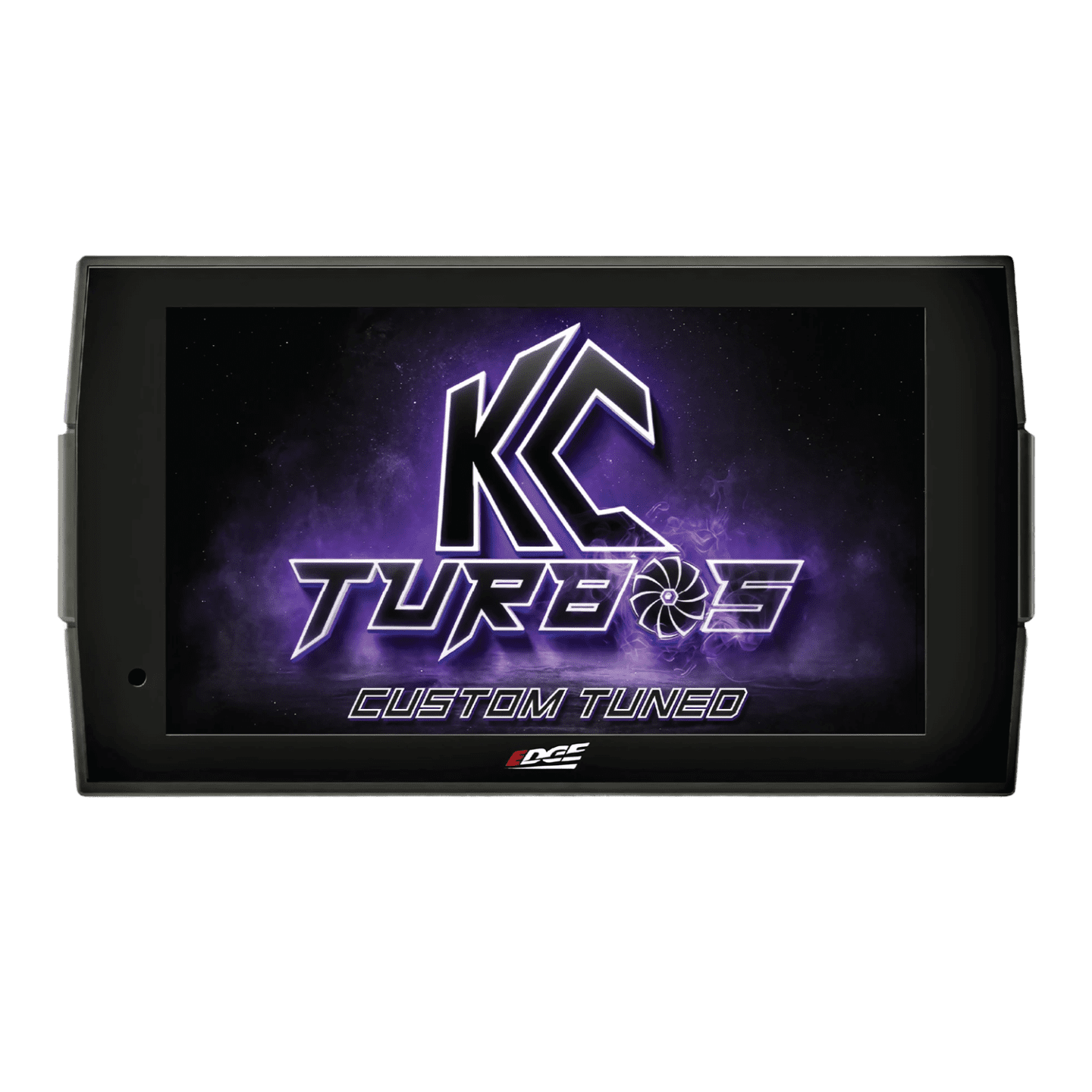

At the same time, the CTS3 monitor elevates the driving experience with a 5-inch full-color touchscreen featuring swipe controls, auto-dimming, and a clean, intuitive layout. More importantly, the custom KC Turbos gauge configuration provides immediate access to critical engine data, allowing drivers to monitor performance in real time. Furthermore, built-in scan tool functionality lets you read and clear diagnostic trouble codes directly from the device, eliminating the need for separate tools.
Simple Plug-and-Play Installation with Factory Tune Retention
Equally important, the KC Turbo CTS3 Evolution Tuner (302664) is fully plug-and-play, requiring no permanent modifications to your truck. Installation is straightforward, and the system retains the factory tune, which means you can easily return the vehicle to stock at any time. Because of this flexibility, the tuner is ideal for owners who want increased performance without sacrificing convenience or reliability.
Data Logging, Expandability, and Legal Compliance
In addition to performance tuning, this system includes built-in data logging, Wi-Fi updates, and support for custom tuning adjustments as your build evolves. Moreover, the CTS3 platform can be expanded using the optional EAS system or EGT Probe Kit, allowing you to monitor additional parameters as needed. Best of all, the KC Turbo CTS3 Evolution Tuner remains 49-state legal, ensuring compliance while still delivering meaningful performance gains.
Injector Compatibility Information
However, it’s important to note that the preloaded tuning files are designed for stock injectors only. That said, KC Power Package injector-specific tuning files are available upon request via email for trucks running larger injectors.
Fitment
2003-2007 Powerstroke 6.0
Features
- More power at your fingertips with Custom KC x Gearhead tunes
- 6 Selectable Power Levels
- Custom KC Turbos gauge layout preloaded
- Compatible with Stock and Modified VGT turbos
- Gain Up To 190 HP with supporting mods
- Supports Custom Tuning and Wi-Fi updates
- Retains factory tune for quick return to stock
- #1 digital gauge monitor for daily drivers & performance enthusiasts
- 5” full-color capacitive touchscreen with auto-dimming & swipe control
- Advanced scan tool – read & clear DTCs with full descriptions
- Built-in data logging with export capability
- Expandable with optional EAS system or EGT Probe Kit
- 100% plug-and-play installation – no modifications required
- Includes windshield mount
- 49-State Legal Tuning
Installation
Stock Turbo Tunes
Level 1 – Tow Master: Tow file rated for 8000lbs without head studs or 14500lbs GVWR with head studs. EGTs should be monitored while towing. +70HP
Level 2 – Lite Street: Lite street tune designed for both street & light towing 4000lbs. EGTs should be monitored while towing. +120HP
Level 3 – Street: Awesome daily driver. This tune has butt kicking response, low smoke, and outrageous power. NOT suggested for any towing. +130HP
Level 4 – Hot Street: Spicy Street File and should only be used with head studs installed at this power level and above. HEAD STUDS REQUIRED! +140HP
Level 5 – Extreme: This file will extract every last ounce of power out of your truck with the stock turbo. HEAD STUDS REQUIRED! +150HP
Larger VGT Turbo Tunes
Level 1 – Tow Master: This tow file is rated for 8000lbs of towing without head studs or 14500lbs GVWR with head studs. EGTs should be monitored while towing. +90HP
Level 2 – Lite Street: This is a light street tune designed for both street & light towing 4000lbs. EGTs should be monitored while towing. +130HP
Level 3 – Street: Awesome daily driver. This tune has butt kicking response, low smoke, and outrageous power. NOT suggested for heavy towing. +140HP
Level 4 – Hot Street: Spicy Street File and should only be used with head studs installed at this power level and above. HEAD STUDS REQUIRED! +150HP
Level 5 – Extreme: This file will extract every last ounce of power out of your truck with the modified VGT turbo. HEAD STUDS REQUIRED! +160HP
Level 6 – Super Extreme: More power over standard extreme. This will extract every last ounce of power out of your truck with your larger modified VGT turbo. HEAD STUDS REQUIRED! +190HP
Warning
Preloaded tunes only support stock injectors. Select larger (KC Power Package) injector files available upon request via email!
***Please restore / return vehicle to stock before updating or loading tune files***
