Bilstein Front B8 6112 Suspension Kit (47-293557) for 2019-2024 Duramax L5P
$918.60
The Bilstein B8 6112 leveling kits enhance ground clearance, support larger tires, and improve wheel travel. Featuring adjustable spring seat positions for 0–2.75 inches of front lift, the kits include two 60mm shock absorbers, custom cold-wound coil springs, and billet aluminum spring seats. The large digressive piston design delivers superior damping for better on- and off-road performance, making it a top choice for upgrading light trucks and SUVs.
Description

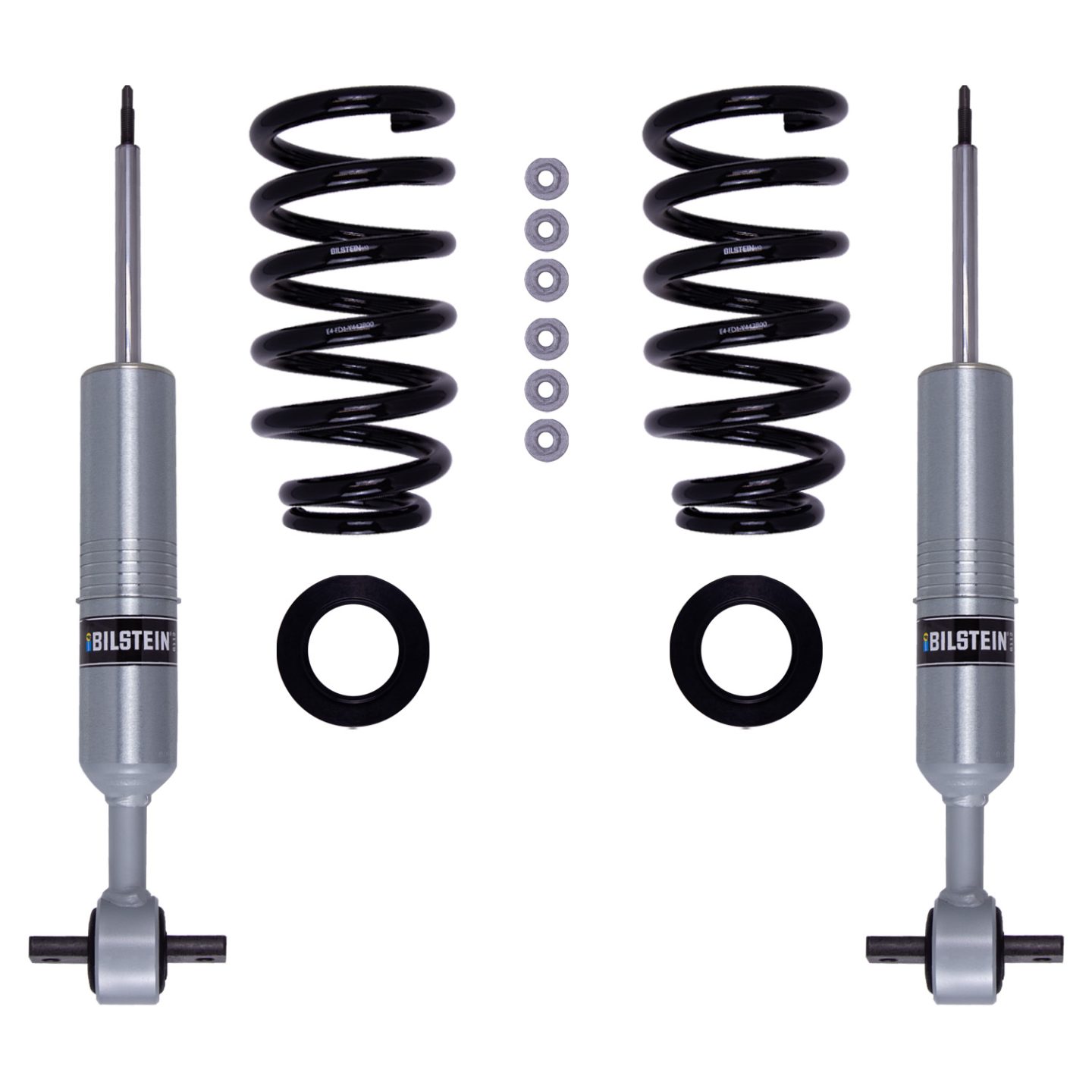

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Additional information
| Weight | 45 lbs |
|---|---|
| Dimensions | 26 × 11 × 8 in |
| Brand |
Fitment
Silverado 1500 2024-2019
Silverado 1500 LTD 2022
Sierra 1500 2024-2019
Sierra 1500 Limited 2022
Features
Finish :Dampers: Zinc Plated/Springs: Black
Reservoir :No
Body Design :Snap Ring Grooved Body (Coilover)
Body Diameter (id) :60mm
Replacement Mounting Kit :B4-KT1-Z317A00
Spring Seat Included :Yes
