BD Diesel TorqueMaster 68RFE Transmission & Converter Package (1064294BM) for 2019-2024 Cummins 6.7L
$8,259.00

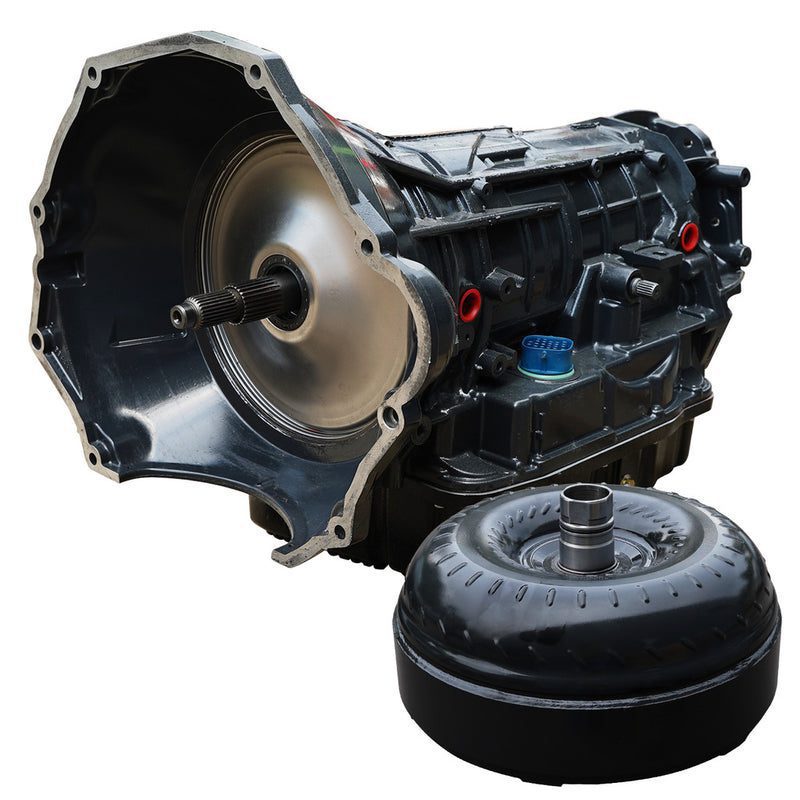

The BD Diesel TorqueMaster 68RFE Transmission & Converter Package (1064294BM) is a high-performance upgrade for 2019–2024 Ram trucks with the 6.7L Cummins engine. It features a remanufactured transmission with enhanced components and a heavy-duty torque converter, designed to handle increased power, towing, and off-road demands. This package improves durability, shifting performance, and reliability, making it ideal for truck owners seeking enhanced drivability and strength beyond stock capabilities.
The BD Diesel TorqueMaster 68RFE Transmission & Converter Package (1064294BM) is a high-performance upgrade designed specifically for 2019–2024 Ram trucks equipped with the 6.7L Cummins engine. Engineered to handle increased horsepower and torque, this package includes a fully remanufactured 68RFE transmission with upgraded internals, improved clutch packs, and enhanced valve body calibrations for superior durability and smoother shifting under heavy loads. Paired with a robust torque converter featuring a billet cover and high-torque stator, the system is built to withstand the demands of towing, performance tuning, and off-road applications. Ideal for truck owners seeking reliability and performance beyond stock capabilities, the BD Diesel TorqueMaster package offers peace of mind with increased holding power and optimized drivability for demanding diesel applications.
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
Fitment
2019-2024 Cummins 6.7L
Features
TRANSMISSION
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Performance Transmission but with the added touch of a Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
- Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
TORQUE CONVERTER
- Triple Disc
- Enhanced Stall – Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings – not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Installation
INSTALL TIME
