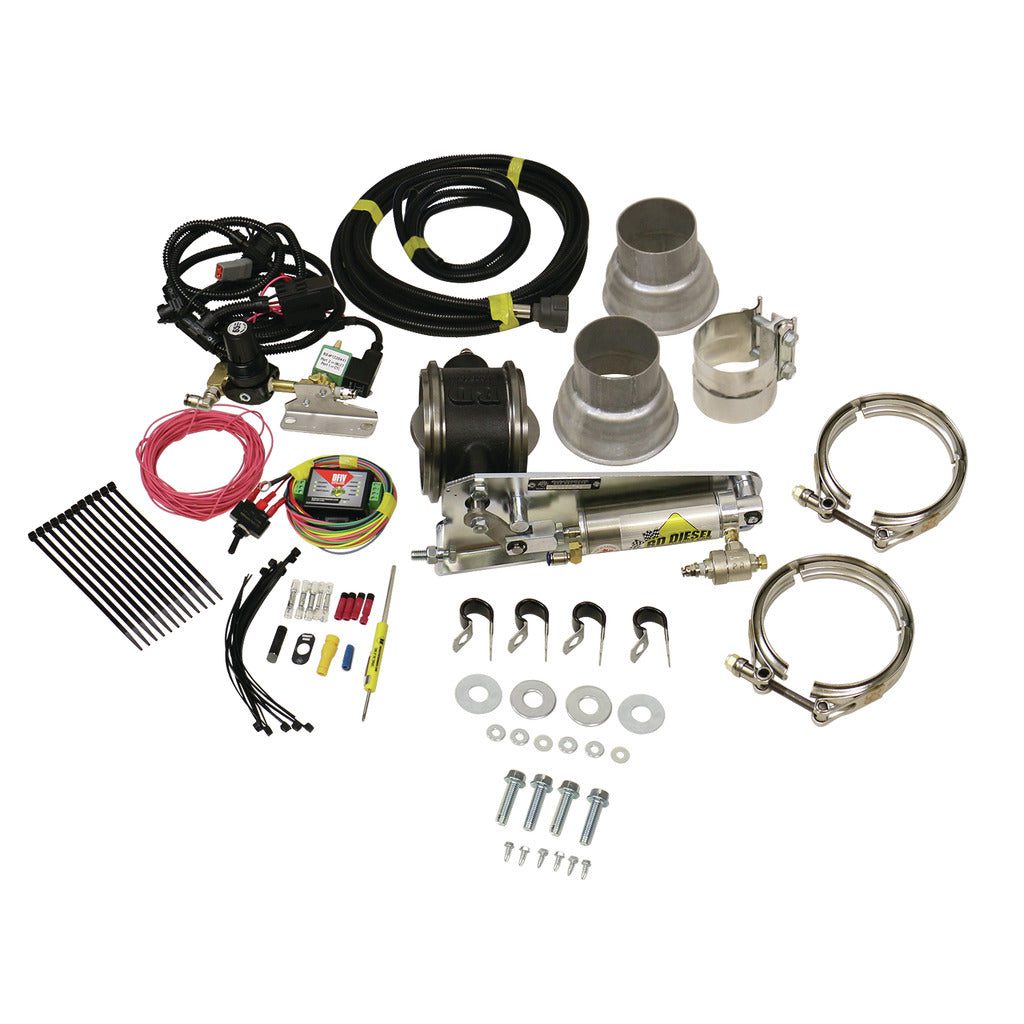

BD Diesel 5″ Exhaust Brake w/o Air Compressor (1028050) Universal Install
$1,485.95
BD has nearly 30 years of experience developing exhaust brakes, using insights gained from extensive real-world use to refine their design. Their brakes feature BD’s exclusive Variable Orifice Technology, providing up to 150 retarding horsepower across the engine’s RPM range—not just at high RPMs. The brakes use durable materials like cast-iron housings, alumibronze bushings, piston ring-seals, and stainless steel components to withstand high heat and resist corrosion.
It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD’s exclusive Variable Orifice Technology, BD’s solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine’s RPM range – not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD’s exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD’s butterfly valve and rotating shaft are made of stainless steel to resist corrosion. An air compressor is included in most kits for newer pick-up trucks.
| Weight | 25 lbs |
|---|---|
| Dimensions | 19.1 × 14.9 × 8.5 in |
Fitment
Universal with a 5″ Exhaust Pipe
Features
- Provides up to 150 retarding horsepower throughout the engine’s RPM range
- BD’s exclusive Variable Orifice Technology
- Adjustable pressure regulation
- Pneumatic spring loaded cylinder
- BD’s solid, offset butterfly
- Rugged, cast-iron housings
- BD’s exclusive alumibronze bushing
- Piston ring-seals
- Stainless steel butterfly shaft
- Proven to stand-up under the harsh, high heat conditions of the exhaust environment
- All mounting hardware provided
- There’s a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It’s the best! Compare it to the competition, and you’ll see why.
Installation
Warning
This product CANNOT be shipped to California!
NOTE
- Brake controls connect to throttle pedal with Accelerator Pedal Position Sensor (APPS). Vehicles without APPS will require 1300420 micro switch and custom bracket will have to be made.
- Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
- May not work with engines that have OEM Variable Vane (VGT) turbos such as Cummins ISX. Will work with aftermarket non-VGT turbos.
